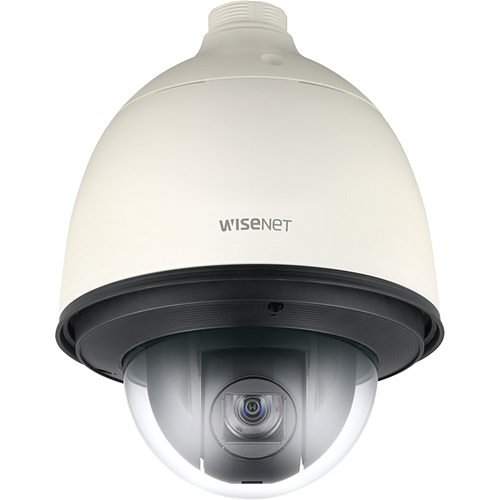

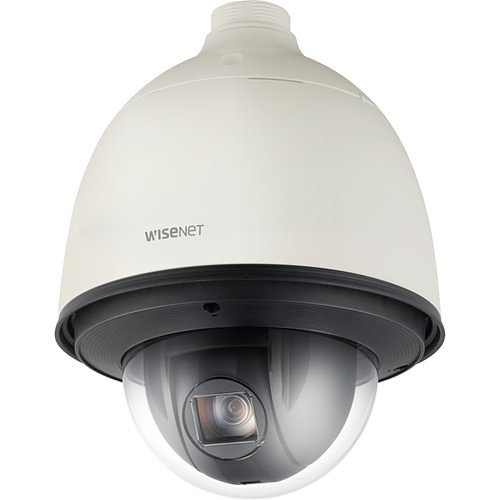

Hanwha HCP-6320HA 2MP Analog HD Outdoor PTZ Camera, 4.44-142.6mm Varifocal Lens, Ivory

Brand: Hanwha Vision

Hanwha HCP-6320HA 2MP Analog HD Outdoor PTZ Camera, 4.44-142.6mm Varifocal Lens, Ivory

Name: Hanwha HCP-6320HA 2MP Analog HD Outdoor PTZ Camera, 4.44-142.6mm Varifocal Lens, Ivory
Brand: Hanwha Vision
SKU: HCP-6320HA
Availability: InStock

In Stock

Special Order

$899.64

- High-definition video capture with 1920 x 1080 resolution at 30 frames per second
- Low light sensitivity of 0.2 Lux at F1.6 in color and 0.01 Lux at F1.6 in black and white
- Advanced 32x optical zoom ranging from 4.44 to 142.6 mm, complemented by 16x digital zoom
- Day and Night functionality with Infrared Cut Filter, enhanced defog capability, Wide Dynamic Range (120dB), and third-generation noise reduction
- Rapid preset adjustment at 700 degrees per second, with azimuth control
- Robust weather and impact resistance with IP66 and IK10 ratings
- Remote control via RS-485 and coaxial interfaces

SKU: HCP-6320HA Categories: HDoC Cameras, PTZ Security Cameras, Video Surveillance Brand: Hanwha Vision

Description

The HD+ series offers advanced 4MP (2560 x 1440) and 2MP (1920 x 1080) resolution, delivering exceptional image clarity and detail. This high-definition technology outperforms traditional analog systems and matches network system resolution without any latency issues. The enhanced image quality ensures sharper and more vibrant visuals. The 4MP HD+ series is perfect for mid to large-sized enterprises and projects that demand dependable surveillance solutions. Additionally, these cameras can transmit 30fps with 4MP (QHD) video. The HD+ series efficiently transmits 4MP / 2MP video and audio over distances up to 500m using a single coaxial cable, eliminating the short transmission range limitations typical of standard analog systems. This makes it an outstanding choice for those seeking robust and reliable video surveillance capabilities.

Camera
Wide Dynamic Range	Yes

Certifications
Ingress Protection Rating	IP66
NDAA Compliant	Yes

Display & Graphics
Color Supported	Color, Monochrome
Maximum Video Resolution	1920 x 1080

Environmental Conditions
Maximum Operating Temperature	131°F
Minimum Operating Temperature	-58°F
Operating Humidity

Exposure
Longest Shutter Speed	2 Second
Minimum Illumination	0.03 lux
Shortest Shutter Speed	1/12,000 Second

General Information
Brand Name	Hanwha Vision
Manufacturer	Hanwha Vision
Manufacturer Part Number	HCP-6320HA
Product Model	HCP-6320HA
Product Name	Full-HD 1080p Analog HD 32x Outdoor PTZ Dome Camera
Product Series	HD+
Product Type	Dome Camera

Lens
Focal Length	4.44-142.6 mm
Maximum Focal Length	142.6 mm

Miscellaneous
Features	/, 0.2Lux at F1.6, B/W - 0.01Lux at F1.6, Day and Night (ICR), Defog, WDR (120dB), SSNRIII, Full HD (1920 x 1080, 30fps) resolution, Powerful 32x zoom (4.44 - 142.6mm), Digital 16x, Preset 700°/sec, Azimuth, RS-485, up the coax, 24V AC
Impact Protection Rating	IK10
Indoor/Outdoor	Outdoor

Physical Characteristics
Color	Ivory
Durability	Dustproof, Impact Resistant, Waterproof, Weather Resistant
Form Factor	Dome
Height	11.56"
Weight (Approximate)	7.28 lb

Power Description
Input Voltage	24V AC

Product Information
Diameter	8.66"
Mount Type	Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording Formats	HD

Technical Information
Connectivity Technology	Wired
Effective Camera Resolution	2MP
Field of View	H: 62.8° - 2.23°, V: 36.8° - 1.26°
HD Recording	Yes
Lens Mount Type	Board Mount
Lens Type	Varifocal
Maximum Aperture	F1.6\|F4.4
Maximum Frame Rate	30 fps
Minimum Focal Length	4.44 mm
Optical Zoom	32x
