Description

Discover the exceptional performance of Dahua’s 5MP HDCVI cameras, designed for expansive surveillance coverage and high-resolution imagery. This 5MP HDCVI line capitalizes on existing coaxial cable infrastructure to provide forensic-quality images effortlessly across extensive distances. These cameras offer multiple switchable output formats and a true 16:9 aspect ratio, ensuring undistorted views without image stretching—a rarity among 5MP HD-over-coax solutions. Ideal for a wide range of security applications, they feature infrared (IR) illumination for challenging light environments, voltage tolerance to handle power fluctuations, and an IP67 rating for durability in harsh outdoor conditions.

Camera
Image Sensor TypeCMOS
Night Vision Distance196.85 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1440

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/4 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberA52BJAZ
Product LineHDCVI
Product ModelA52BJAZ

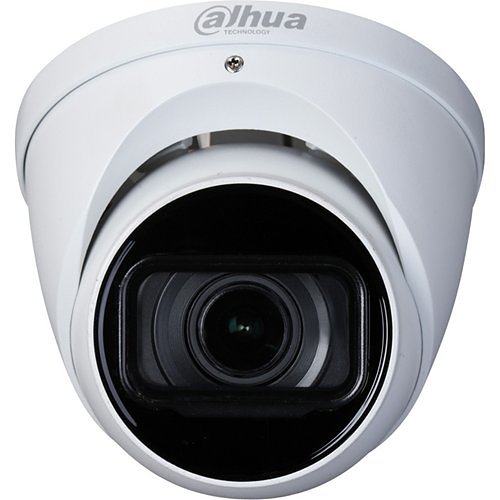

Product Name5MP HDCVI Vari-focal Eyeball Camera
Product SeriesPro
Product TypeSurveillance Camera

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Country of OriginCN
Features2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, 3D Noise Reduction, Audio Compression, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Noise Reduction, Privacy Masking, Wide Dynamic Range
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementNo

Others
ADI Part Number ReplacesVD-A52AJ6Z
Model Number ReplacesA52AJ6Z

Physical Characteristics
ColorWhite
DurabilityDustproof, Waterproof
Form FactorEyeball
Weight (Approximate)1.39 lb

Power Description
Input Voltage24V AC

Product Information
Diameter4.8"
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal: 31.4° to 113.0° Vertical: 17.6° to 58.0° Diagonal: 36° to 138.0°
HD RecordingYes
Lens Mount TypeM14 Mount
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Number of IR LEDs2
Optical Zoom5x

Video
Analog Video Signal FormatAHD, CVBS, HDCVI, TVI
Horizontal Resolution960 TVL

Warranty
Limited Warranty5 Year
