Description

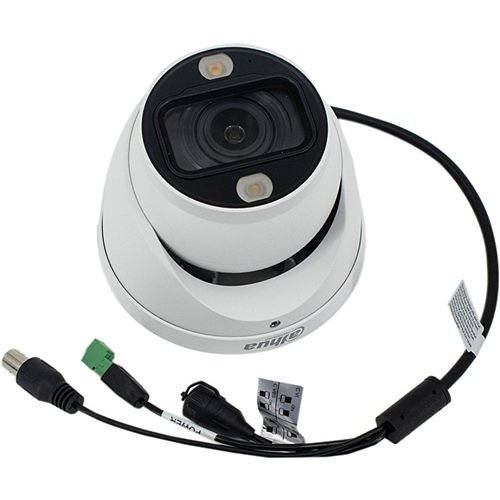

Discover the exceptional resolution of Dahua’s 5 MP HDCVI surveillance camera, designed for extensive coverage and detailed imaging excellence. This 5 MP HDCVI series maximizes existing coaxial infrastructures to provide high-definition, forensic-level images seamlessly across long distances. Equipped with a 2.8 mm fixed lens, multi-language On-screen Display, and HD/SD switchable output, this security camera is suitable for a wide range of applications. Advanced features such as Night Color and True Wide Dynamic Range enable flawless operation in diverse lighting conditions, while an IP67 rating ensures durability in the toughest environments.

Security cameras from Dahua featuring Night Color Technology are equipped with a high-performance sensor and large aperture lens, delivering sharp, vibrant color images in low-light settings. This light-enhancing technology captures more available light, resulting in images with superior detail and contrast. The Night Color camera employs white-light LEDs to provide full-color imagery even in complete darkness, also serving as an effective visual deterrent. This innovative technology activates white-light illuminators automatically when human presence is detected in a predefined area, ensuring capture of critical full-color details. HDCVI technology supports simultaneous transmission of video, audio, and data over a single coaxial cable. Two-way data transmission allows these cameras to communicate with an HCVR for control signals or alarm activation.

Camera
Image Sensor TypeCMOS
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2880 x 1620

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/4 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberA52CJ6Z
Product LineHDCVI
Product ModelA52CJ6Z
Product Name5MP Night Color 2.0 HDCVI Eyeball Camera
Product SeriesPro
Product TypeSurveillance Camera

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Country of OriginCN
Features3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Built-in OSD Function, Day/Night, Highlight Compensation (HLC), Privacy Masking, Wide Dynamic Range
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementNo

Others
ADI Part Number ReplacesVD-A42BJAZ
Model Number ReplacesA42BJAZ

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Waterproof
Form FactorEyeball
Weight (Approximate)1.34 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter4.8"
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal: 35° to 112° Vertical: 19° to 57° Diagonal: 40° to 137°
HD RecordingYes
Lens Mount TypeM14 Mount
Lens TypeVarifocal
Maximum Aperturef/1.2
Maximum Frame Rate25 fps
Minimum Focal Length2.7 mm
Night VisionYes
Night Vision TypeColor
Number of IR LEDs2

Video
Analog Video Signal FormatAHD, CVBS, HDCVI, TVI

Warranty
Limited Warranty5 Year
