Description

Discover the exceptional clarity and extensive coverage with Dahua’s Ultra 4K HDCVI cameras, designed for superior image detail in security surveillance. These state-of-the-art cameras utilize existing coaxial infrastructures to deliver forensic-level images seamlessly over long distances. Featuring advanced ISP chip technology exclusively developed by Dahua, the 4K HDCVI camera offers breathtaking video quality. This proprietary ISP integrates cutting-edge image processing algorithms optimized specifically for surveillance camera applications. With complete control over ISP features and production, Dahua provides the most advanced security solutions at an affordable price point.

For environments with challenging lighting conditions, Dahua’s Starlight Ultra-low Light Technology delivers exceptional light sensitivity, capturing vivid color details in lighting as low as 0.005 lux. The camera employs a series of optical enhancements to evenly distribute light across the scene, producing clear and detailed images even in dark settings.

Camera
Image Sensor TypeCMOS
Night Vision Distance196.85 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberA82AH5V
Product LineHDCVI
Product ModelA82AH5V

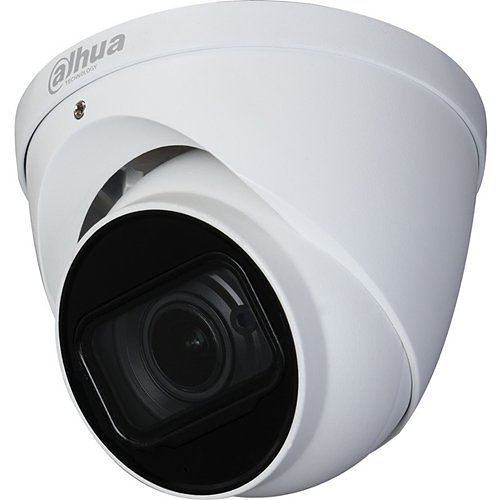

Product Name4K HDCVI Vari-focal Eyeball Camera
Product SeriesPro
Product TypeSurveillance Camera

Lens
Focal Length3.7-11 mm
Lens IncludedYes
Maximum Focal Length11 mm

Miscellaneous
Country of OriginCN
Features2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Highlight Compensation (HLC), Wide Dynamic Range
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementNo

Physical Characteristics
ColorWhite
DurabilityDustproof, Waterproof
Form FactorEyeball
Weight (Approximate)1.39 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter4.8"
Mount TypeCeiling Mount, Corner Mount, Gang Box Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Recording Formats4K

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHorizontal: 112° to 46°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeVarifocal
Maximum Aperturef/1.5
Maximum Frame Rate30 fps
Minimum Focal Length3.7 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs2
Optical Zoom3x

Video
Analog Video Signal FormatAHD, CVBS, HDCVI, TVI

Warranty
Limited Warranty5 Year
