Description

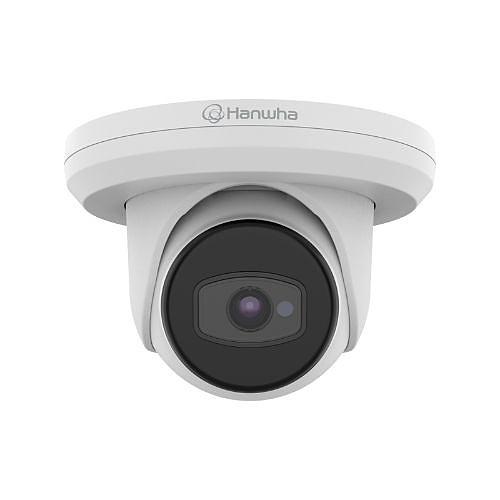

The Flateye security cameras offer the streamlined footprint typical of dome camera setups while delivering the performance benefits associated with bullet-style surveillance solutions.

– **Flat Lens Design:** Mitigates infrared glare and reduces the accumulation of water spots.
– **Easy Installation:** Adjust the camera’s field of view without needing to remove a dome cover.
– **Optimized for Low-Light Settings:** Unique separation of IR illuminators from the lens minimizes infrared glare in poorly lit conditions.
– **Integrated IR Illuminators:** Features onboard non-visible infrared illumination to enhance visibility in low-light environments.

Camera
Night Vision Distance82.02 ft

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity0-90% RH

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/50,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberACE-6020R
Product ModelACE-6020R
Product Name2MP Analog HD Flateye Camera
Product SeriesA
Product TypeFlateye Camera

Lens
Focal Length3.6 mm
Lens IncludedYes
Maximum Focal Length3.6 mm

Miscellaneous
Features,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12v DC power, 2MP Full HD resolution at 30FPS, 3.6mm fixed focal lens FoV H - 81°/V - 42°, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance max.500m
Impact Protection RatingIK10

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorFlateye
Product ColorWhite
Weight (Approximate)0.90 lb

Power Description
Input Voltage12V DC

Product Information
Diameter4.72"
Mount TypeBackbox Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 77.6°, V: 40.3°, D: 91.5°
HD RecordingYes
Lens TypeFixed Focus
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.6 mm
Night VisionYes
Night Vision TypeInfrared

Video
Analog Video Signal FormatAHD, CVBS, CVI, TVI

Warranty
Limited Warranty5 Year
