Description

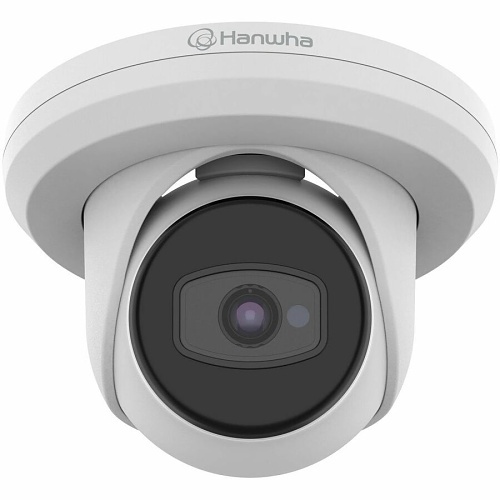

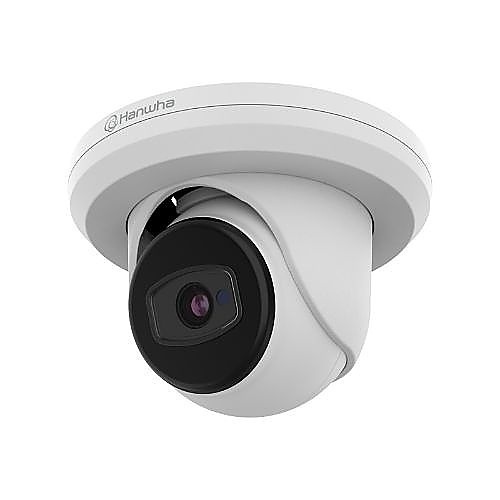

Introducing the Hanwha ACE-8020R Wisenet Series 5MP Turret Camera, engineered to enhance your surveillance system with advanced technology. This security camera delivers exceptional clarity with its impressive 5MP resolution and captures up to 20 frames per second, ensuring sharp images around the clock. Its sophisticated day and night sensor seamlessly adjusts to varying lighting conditions, while the built-in infrared capability offers visibility up to 20 meters even in complete darkness. Equipped with a 3.6mm fixed focal lens, it is suitable for a wide range of monitoring applications. Designed to endure harsh environments, the camera features IP67 and IK10 ratings for optimal durability. Elevate your security infrastructure with the Hanwha ACE-8020R and experience unparalleled peace of mind.

Camera
Night Vision Distance65.62 ft

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity0-90% RH

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/50,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberACE-8020R
Product ModelACE-8020R
Product Name5MP Analog HD Flateye Camera
Product SeriesA
Product TypeFlateye Camera

Lens
Focal Length3.6 mm
Lens IncludedYes
Maximum Focal Length3.6 mm

Miscellaneous
Features,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12v DC power, 3.6mm fixed focal lens FoV H - 94°/V - 54°, 5MP resolution at 30FPS, 4MP at CVI, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance max.500m
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorFlateye
Product ColorWhite
Weight (Approximate)0.90 lb

Power Description
Input Voltage12V DC

Product Information
Diameter4.72"
Mount TypeBackbox Mount

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 83.9°, V: 63.4°, D: 104°
HD RecordingYes
Lens TypeFixed Focus
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.6 mm
Night VisionYes
Night Vision TypeInfrared

Video
Analog Video Signal FormatAHD, CVBS, CVI, TVI

Warranty
Limited Warranty5 Year
