Description

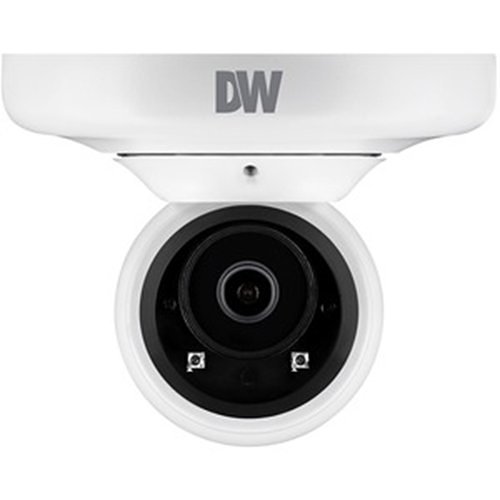

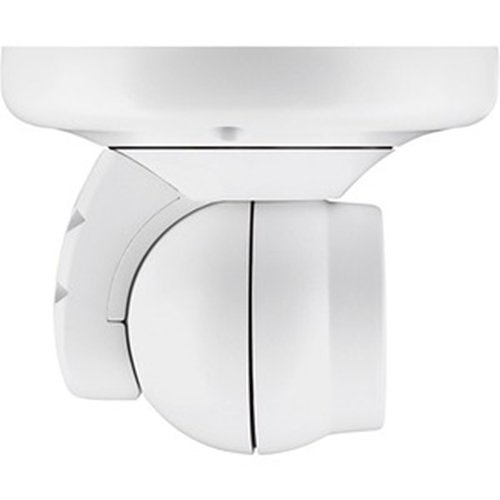

The Star-Light Plus™ UHDoC® 5MP vandal-resistant ball camera, equipped with a 4.0mm fixed lens, excels at capturing color images in near-total darkness and features infrared capabilities. This advanced security camera technology utilizes the Star-Light Plus™ for exceptional low-light performance and supports multiple high-definition analog signals, including HD-Analog, HD-TVI, and HD-CVI.

Built to withstand harsh weather conditions with an IP66 rating, these vandal-resistant cameras are designed to prevent IR reflections and can be managed via the same coaxial cable using UTC. These Universal HD over Coax® cameras are compatible with VMAX® A1 Plus™ DVRs, utilizing existing coaxial infrastructure to deliver an economical and high-resolution video surveillance solution.

Camera
Night Vision Distance70 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2592 x 1944

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-VA553WTIR
Product LineStar-Light Plus
Product ModelDWC-VA553WTIR
Product NameStar-Light Plus Universal HD Over Coax 5MP Vandal Ball Camera with 4.0mm Lens
Product SeriesVA
Product TypeSurveillance Camera

Lens
Focal Length4.0 mm
Maximum Focal Length4 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Mirror, Motion Detection, Motion Tracking, Wide Dynamic Range

Physical Characteristics
ColorWhite
DurabilityDustproof, Vandal Resistant, Waterproof, Weather Resistant
Form FactorBall
Height4.1"
Weight (Approximate)1.16 lb

Product Information
Diameter4.9"
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
HD RecordingYes
Lens TypeFixed
Minimum Focal Length4 mm

Warranty
Limited Warranty5 Year
