Description

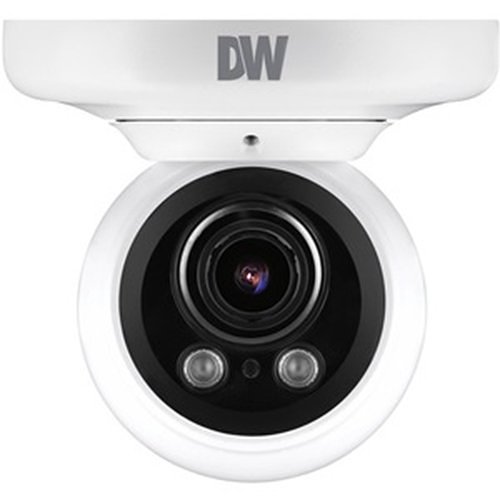

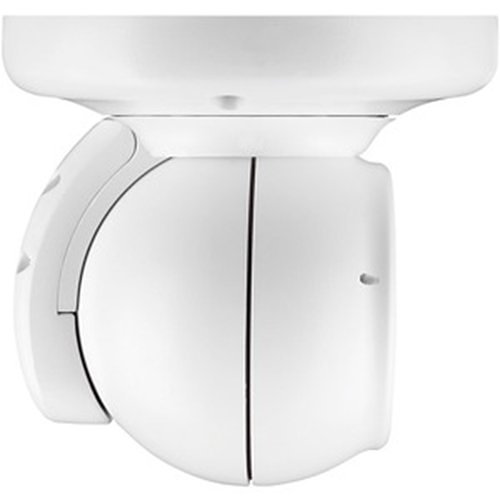

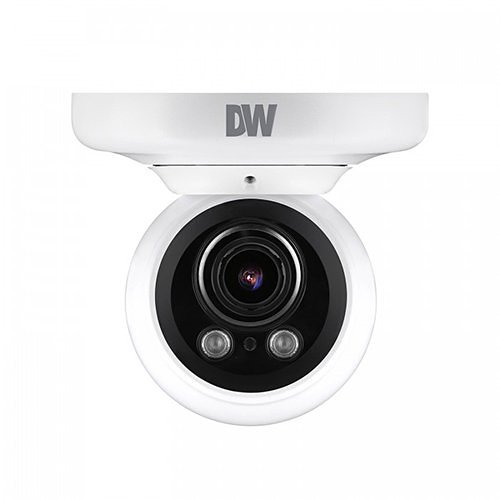

The 5MP Star-Light Plus™ Universal HD over Coax® cameras offer exceptional low-light performance with Star-Light Plus™ color technology, providing clear image quality even in near-total darkness. These cameras are compatible with HD-Analog, HD-TVI, and HD-CVI signals. Designed to withstand harsh weather conditions, they are IP66 rated and feature vandal-resistant ball enclosures that prevent IR reflections. Control is simplified through a UTC system over the coaxial cable. All Universal HD over Coax® cameras are engineered for seamless integration with VMAX® A1 Plus™ DVRs, making it easy to utilize existing coaxial infrastructure for an economical, high-resolution surveillance solution.

Camera
Night Vision Distance80 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-VA583WTIR
Product LineStar-Light Plus
Product ModelDWC-VA583WTIR
Product Name5MP Universal HD Over Coax Vandal Ball Camera
Product SeriesVA
Product TypeSurveillance Camera

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in OSD Function, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Others
ADI Part Number Replaces6K-T8563TIR
Model Number ReplacesDWC-T8563TIR

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorBall
Height4.8"
Weight (Approximate)1.58 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter4.9"
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View85 - 32°
HD RecordingYes
Lens TypeVarifocal
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom5x

Warranty
Limited Warranty5 Year
