Description
– Side-opening design allows seamless access for servicing and installation.
– High-reliability die-cast construction ensures durability.
– Advanced optics support megapixel camera functionality.
– Operational temperature range: -30° to 50°C (-22° to 122°F).
– Complies with IP66 and Type 4X standards for robust environmental protection.
– IK10-rated for mechanical impact resistance and vandal resistance.
– Equipped with cable entry glands and mounting holes at the base.
– Available in models supporting 24VAC, Power over Ethernet (PoE), and mains power.
– Models feature a built-in heater and blower, excluding EH20 and EH20-M versions.
– Sun shroud and mounting options are included, excluding EH20 models.

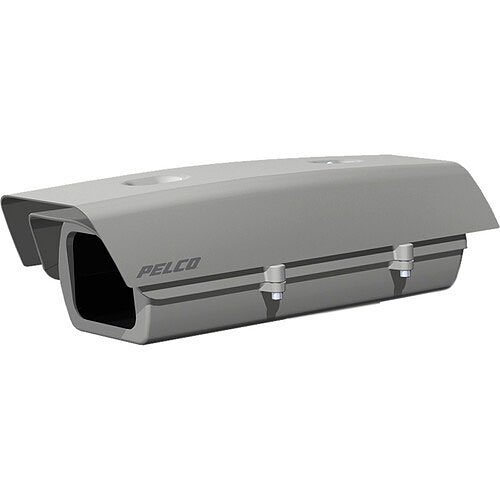

The EH20 Series is a robust and dependable camera enclosure featuring a side-hinged lid and an adjustable sun shroud for streamlined installation. Crafted from die-cast aluminum, it offers IK10 impact resistance and IP66 ingress protection, making it suitable for diverse environments and capable of safeguarding electronic components in temperatures ranging from -30° to 50°C (-22° to 122°F).
The enclosure is compatible with both analog and IP cameras featuring fixed or variable focal length lenses, with or without auto iris capabilities. The side-hinged lid facilitates easy access to the camera sled, while two adjustable PG11 glands at the bottom enable straightforward installation of power and video cables.
