Description

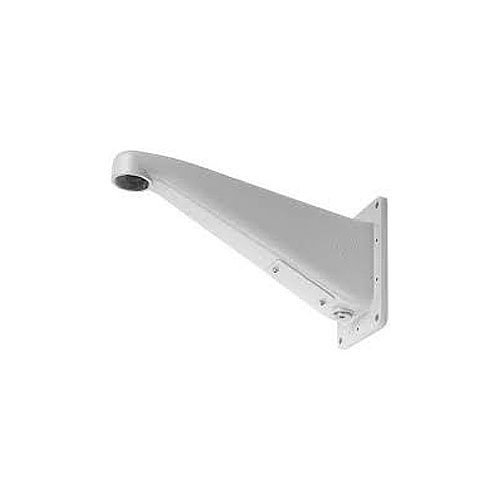

The comprehensive range of wall mounts, including the IWM Series, IWM24 Series, and IDM4018, is engineered for use with Pelco pendant domes such as Spectra, DF5, DF8, and Sarix TM IE Series, and is also compatible with other pendant domes utilizing a 1.5-inch NPT threaded pipe for installation. These mounts are crafted from high-quality materials, with the IWM and IWM24 Series featuring robust cast aluminum construction and available in black, gray, or light gray finishes, while the IDM4018 boasts aluminum construction with a gray polyester powder coat finish.
Designed to support up to 75 pounds (34 kg), these mounts are ideal for attaching directly to any vertical load-bearing surface, ensuring stable wall mount applications. Each mount includes a cable feedthrough hole for seamless video and power cable management and is compatible with various Pelco pendant back box models due to the 1.5-inch NPT threading.
The IWM24 Series is equipped with a built-in 24 VAC, 100 VA transformer, featuring selectable input power (120 or 240 VAC, 50/60 Hz) via an easily accessible internal slide switch. Power wiring can enter through openings in the mounting plate, with an option for a flexible metal conduit fitting on the bottom of the mount. This power capability is particularly advantageous when utilizing Sarix IE Series domes, as it supports the dome heater via the IWM24-SR mount.
Additionally, optional parapet, pole, and corner adapters enhance the versatility of these mounts, making them a practical choice for diverse security camera installation needs.
