Description

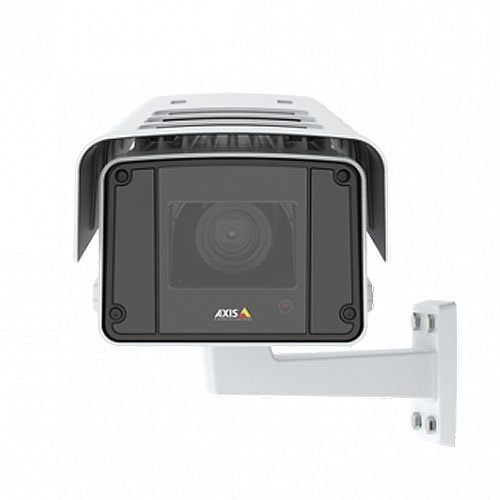

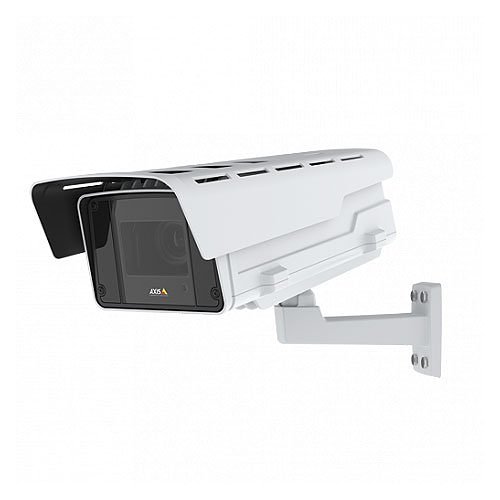

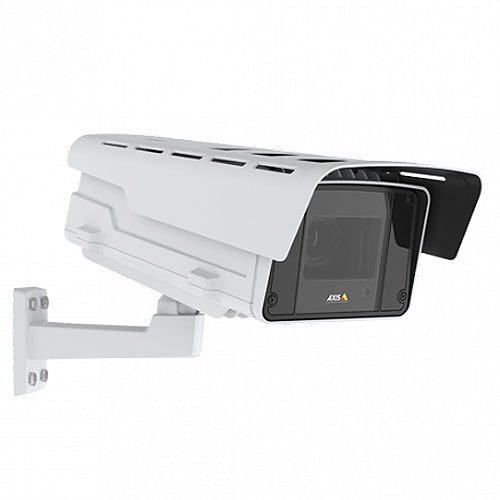

The AXIS Q1615-LE Mk III is a state-of-the-art surveillance camera that merges superior imaging and video performance with advanced hardware and processing capabilities, making it an ideal platform for AI-based analytics powered by deep learning technology.

**Precision in Object Classification**

This fixed box camera features Q-line functionality and outstanding video quality, bolstered by an innovative dual chipset. This design enables highly detailed object classification. Equipped with pre-installed AXIS Object Analytics, the camera’s dual chipset supports robust artificial intelligence through deep learning, allowing it to distinguish between various vehicles such as bikes, cars, buses, and trucks. Users have the flexibility to specify which vehicles to detect and to customize alert conditions, leading to more accurate notifications for security personnel and significantly reducing the incidence of false alarms. Consequently, operators can allocate resources more efficiently and manage a larger number of cameras effectively.

**Edge Processing for Outdoor Surveillance**

With its dual chipset, the AXIS Q1615-LE Mk III processes analytics directly on the camera (on the edge), minimizing the need for external servers. This promotes a faster, more scalable system capable of complex and powerful analytical processing. Additional advantages include real-time data processing, reduced costs, and simplified system architecture. Storage and bandwidth requirements are decreased, and privacy concerns are mitigated as only pertinent video footage is transmitted over the network. Designed for outdoor use, this camera is IP66-, IP67-, and NEMA 4X-rated, providing defense against elements like ice, water, corrosion, and dust. Its OptimizedIR enables clear footage up to 60 meters (196 feet) in darkness, eliminating the need for extra lighting.

**Unleashing AI Potential**

The AXIS Q1615-LE Mk III’s exceptional AI-driven object classification capabilities stem from its dual chipset, which integrates the proprietary Axis ARTPEC chip with a deep-learning processing unit (DLPU). Coupled with the open Axis platform, this advanced hardware offers unique opportunities for deploying custom third-party AI applications focused on human and object classification. The system supports a range of intelligent functions, such as edge-based automatic incident detection, object counting, and anomaly detection—all fully operational within the camera itself, eliminating the necessity for additional hardware.

Camera
Night Vision Distance196.85 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity100%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/125000 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number02064-001
Product LineQ
Product ModelQ1615-LE Mk III
Product NameQ1615-LE Mk III Network Camera
Product SeriesQ16
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length8 mm
Lens IncludedYes
Maximum Focal Length8.50 mm

Miscellaneous
FeaturesActive Tampering Alarm, Audio Detection, Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Microphone In, Motion Detection, Password Protection, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents Q1615-LE Mk III Network Camera AXIS T94Q01A Wall Mount Sunshield Connector Kit Resistorx T20 Tool Installation Guide Windows Decoder 1-user License

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-0884001
Model Number Replaces0884-001

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth19.4"
DurabilityCorrosion Resistant, Dust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorBox Mount
Height7"
Product ColorWhite
Weight (Approximate)15.40 lb
Width7.9"

Product Information
Mount TypeBackbox Mount, Bracket Mount, Ceiling Mount, Conduit Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view: 102°-40° Vertical field of view: 58°-22°
HD RecordingYes
Lens Mount TypeCS Mount
Lens TypeVarifocal
Maximum Aperturef/1.2
Maximum Frame Rate120 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3.4x

Warranty
Limited Warranty5 Year
