Description

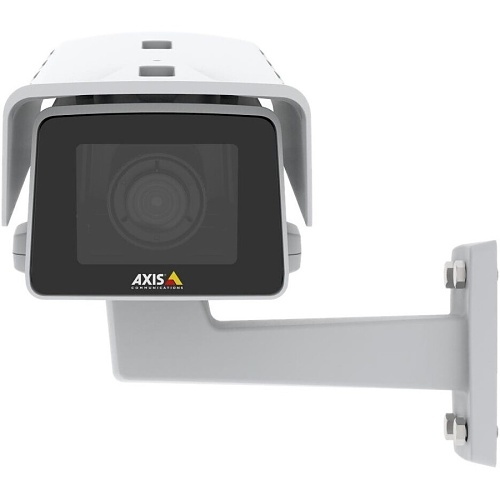

This compact, outdoor-ready surveillance box camera offers 5 MP resolution with exceptional image quality, even in low-light environments. Engineered as an effective visible deterrent, it helps prevent trespassing and other undesirable activities.

**Cost-Effective Surveillance Solution**

This budget-friendly camera includes audio input for recording videos with sound. It supports PoE and redundant DC power, ensuring flexible installation and data security during power outages. Features like signed firmware and secure boot protect against unauthorized firmware installations and integrity breaches. With advanced compression technology supporting H.264/H.265, the camera significantly reduces bandwidth and storage requirements. Additionally, preinstalled object analytics software facilitates human and vehicle detection and classification.

**Excellent Image Quality in Low Light**

Delivering 5 MP resolution at up to 30 fps, this camera ensures outstanding video quality even in low-light conditions. The Lightfinder technology provides true-color images in limited lighting, while Forensic WDR offers clarity in scenes with varying light conditions. Suitable for diverse surveillance scenarios, it includes a CS-mount supporting motorized lenses for remote zoom functionality. A lens calculator is available to help select the best lens for specific needs.

**Deterrence-Oriented Design**

Housed in a robust IP66-, IK10-, and NEMA 4X-rated casing, this camera is protected against water, corrosion, dust, and impacts. Designed to deter potential offenders, it features a visible fixed angle of view for precise audio and video recording within a defined area. The edge-to-edge technology allows connections to compatible speakers, such as a horn speaker, for enhanced deterrent capabilities.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-13°F (-25°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/33500 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number02623-001
Product LineM
Product ModelM1137-E MK II
Product NameM1137-E Mk II Box Camera
Product SeriesM11
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-13 mm
Lens IncludedYes
Maximum Focal Length10 mm

Miscellaneous
FeaturesAudio Detection, Built-in Microphone, Day/Night, Mirror, Password Protection, Privacy Masking, SD Card Local Storage, Tampering Alarm, Vehicle Detection, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents M1137-E Mk II Box Camera AXIS T94Q01A Wall Mount Torx® T20 screw driver Torx® T30 screw bit connector kit installation guide Windows decoder 1-user license

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityCorrosion Resistant, Dust Resistant, Impact Resistant, Waterproof
Form FactorBox Mount
Product ColorWhite
Weight (Approximate)3.97 lb

Power Description
Input Voltage10V DC, 28V DC

Product Information
Mount TypeWall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View99°-31° / 71°-24°
HD RecordingYes
Lens Mount TypeCS-Mount
Lens TypeVarifocal
Maximum Frame Rate30 fps
Minimum Focal Length3.50 mm
Optical Zoom2.9x

Warranty
Limited Warranty5 Year
