Description

Here’s a revised version that emphasizes industry keywords and removes specific references to ADI or ADI Global:

  • H.265, H.264 Main, High, MJPEG video codecs
  • Supports resolutions up to 5 megapixels (MP) at 30 frames per second (fps)
  • Delivers up to 60 images per second (ips) at 4 MP with 5MP camera models
  • Features Micro SDHC & SDXC storage up to 2TB, with 128GB tested capacity
  • Incorporates Basic Analytics such as Motion Detection and Camera Sabotage Alert
  • Designed for operation in temperatures ranging from -10° to 55°C (14° to 131°F)
  • Compatible with 24 VAC, 12 VDC, and IEEE802.3af Power over Ethernet (PoE)
  • Utilizes advanced Smart Compression Technology
  • Offers a selection of standard CS megapixel lens options
  • Integrates with many video management systems
  • Conforms to ONVIF Profile S, G, Q, and T standards
  • Comes with a comprehensive 3-year warranty and customer support

**Sarix Professional Range**
The Sarix® Professional (P) range includes powerful, versatile, and cost-effective cameras, covering a broad spectrum of indoor and outdoor setups such as bullet and dome formats. Options also include a vandal-resistant wedge camera and a box camera. You can customize the performance attributes and physical configuration to suit varied lighting conditions, environments, and applications.

**Camera Compatibility**

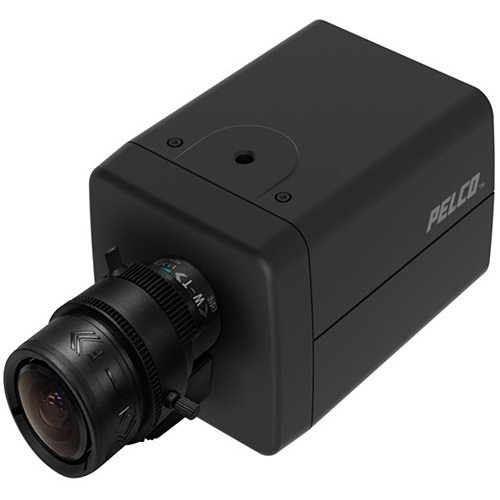

The IXP Series Box Cameras from the Sarix Professional Range work with an array of standard CS mount megapixel lenses for different surveillance requirements, ranging from wide-angle to long-range. These box cameras include an auto back focus function that adapts to the chosen lenses, ensuring optimum focus at all times. The Sarix IXP Series boasts advanced color science and true Wide Dynamic Range (WDR) for superior visibility in challenging lighting.

**Video Streaming Options**
Offering three simultaneous video streams, the Sarix Professional Range allows flexible compression using efficient H.265, H.264 High or Main profiles, or MJPEG formats. Streams can be tailored with various frame rates and adjustable bit rates for optimized balance between image quality and storage or bandwidth efficiency. Smart Compression is available for both H.264 and H.265, effectively reducing storage and bandwidth needs.

**Onboard Edge Storage**
Cameras in the Sarix Professional Range come equipped with onboard edge storage via a micro SDHC/SDXC card. Video clips can be stored on the card upon alarm triggers, or video can be continuously recorded to the SD card should network connection be interrupted. Video retrieval from the card is possible through FTP protocol or an ONVIF Profile G compliant client.

**Open Integration**
Sarix Professional Range cameras easily connect to Pelco video management systems like VideoXpert™, VXToolbox, and others. They also integrate smoothly with leading third-party systems via the open Pelco API or through ONVIF Profiles S, G, Q, and T.

**Web Interface**
Featuring a standard web browser interface, these cameras offer simplified remote configuration and management. The interface is optimized for convenient setup of features such as color, exposure, flicker control, backlight compensation, and streaming parameters.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2048 x 1536

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature14°F (-10°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/10000 Second

General Information
Brand NamePelco by Motorola Solutions
ManufacturerMotorola Solutions, Inc.
Manufacturer Part NumberIXP23
Product LineSarix
Product ModelIXP23
Product NameSarix Professional Series Box Camera
Product SeriesSarix Professional 3
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Lens IncludedNo

Miscellaneous
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Motion Detection, Wide Dynamic Range
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack
Depth3.9"
Form FactorBox Mount
Height2.4"
Weight (Approximate)14.82 oz
Width2.9"

Power Description
Input Voltage24V AC

Product Information
Mount TypeGang Box Mount, Pedestal Mount, Surface Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
HD RecordingYes
Lens Mount TypeCS Mount
Lens TypeFixed
Maximum Frame Rate30 fps

Warranty
Limited Warranty3 Year
