Description

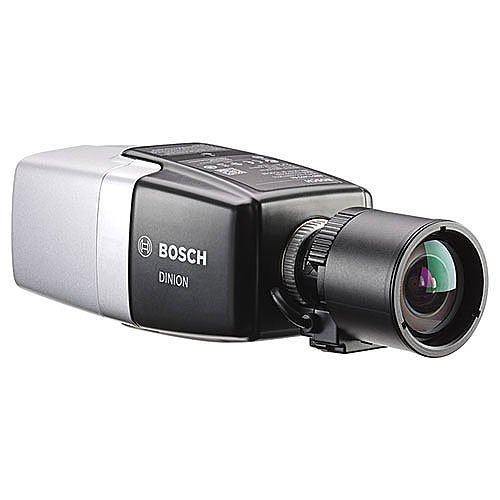

This surveillance camera delivers crystal-clear imagery around the clock, excelling even in low-light or nighttime environments. Thanks to its advanced starlight sensitivity, the device operates efficiently with minimal ambient illumination. The expanded dynamic mode ensures detailed visuals in scenes with challenging lighting conditions. Available in 1080p or 720p resolutions, the camera captures up to 60 frames per second. A range of high-quality lenses can be purchased separately.

**Features**

**Exceptional Low-Light Imaging**
Utilizing the latest sensor technology and sophisticated noise suppression, this camera exhibits remarkable low-light sensitivity in color. It maintains outstanding color performance with minimal ambient lighting.

**Rapid Frame Capture**
The capability to capture 60 frames per second ensures optimal performance in fast-paced scenes, safeguarding against data loss.

**High Dynamic Range (HDR)**
Incorporating HDR technology via a multiple-exposure process, the camera captures intricate details in both highlights and shadows. This feature allows for easy identification of objects and features, such as faces against bright backlights. The camera’s dynamic range is determined through Opto-Electronic Conversion Function (OECF) analysis, conforming to IEC 62676 Part 5 standards for reliable comparison across different cameras.

**Content-Based Imaging Technology (CBIT)**
CBIT significantly enhances image quality across all lighting conditions by analyzing the scene with Intelligent Video Analytics. This technology fine-tunes image processing for improved detail in critical areas and overall performance. Intelligent Auto Exposure allows for the clear visibility of moving objects in variably lit scenes.

**Intelligent Video Analytics**
This camera’s integrated video analytics are both robust and intelligent, embodying the Intelligence-at-the-Edge concept to deliver powerful capabilities:

– Simple calibration
– False alarm reduction
– Extended range identification
– Crowd and queue management
– Density and flow counting

This mission-critical video analytics can reliably detect, track, and assess objects, issuing alerts when predefined alarms are activated. With a comprehensive set of alarm rules, alongside object filters and tracking modes, even the most complex tasks become straightforward.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1280 x 720

Environmental Conditions
Maximum Operating Temperature122°F
Minimum Operating Temperature-4°F
Operating Humidity93%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/15000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberNBN-73013-BA
Product LineDINION IP
Product ModelNBN-73013MP-B
Product NameFixed camera1 mPMP HDR
Product Series7000
Product TypeIP Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Lens IncludedNo

Miscellaneous
Environmental CertificationChina RoHS, WEEE
Environmentally FriendlyYes
FeaturesAudio Detection, Auto Gain Control, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Dynamic Noise Reduction, Enter/Exit Detector, ePTZ, Privacy Masking, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/OutdoorIndoor
Package Contents1C/CS Mount adapter ring for mounting a lens with a C-Mount, 1Data/Alarm connector (12Pins), 1DINION camera, 1Identification label sheet, 1Installation Guide, 1Power connector (2Pins), 1Sensor protection cap (Mount on camera)

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorSilver
Color FamilyGray
Form FactorBox Mount
Height2.6"
Product ColorMetallic Titanium
Weight (Approximate)1-85 lb
Width3.1"

Power Description
Input Voltage12V DC

Product Information
Length5.5"
Mount TypeBracket Mount, Ceiling Mount, Junction Box Mount, Pole Mount, Tripod Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution1MP
HD RecordingYes
Lens Mount TypeCS Mount
Maximum Frame Rate60fps
Video Signal FormatNTSC, PAL

Video
Analog Video Signal FormatCVBS
