Description

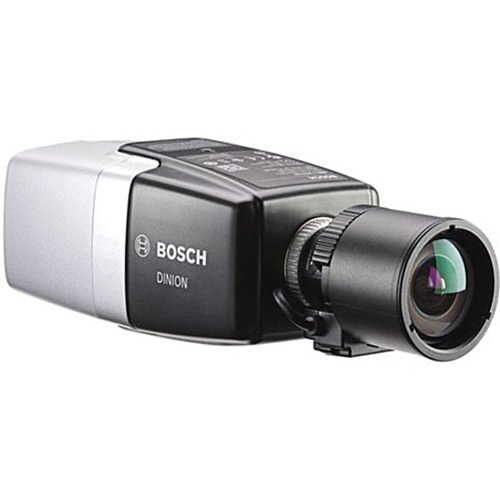

This surveillance camera excels in delivering sharp images 24/7, even in low-light or nighttime conditions. Featuring exceptional starlight sensitivity, it operates effectively with minimal ambient light. Its extended dynamic range mode ensures detailed image capture in challenging lighting scenarios.

Available in 1080p or 720p resolution, the camera supports up to 60 frames per second for dynamic scenes. A variety of high-quality lenses can be purchased separately to enhance performance.

**Functions**

**Superior Low-Light Performance**
Leveraging cutting-edge sensor technology and advanced noise reduction, this camera demonstrates remarkable sensitivity in color, maintaining excellent image clarity even with limited ambient light.

**High-Speed Performance**
With a 60 frames per second mode, the camera is optimized for capturing fast action scenes without missing critical data.

**High Dynamic Range (HDR)**
The camera utilizes a High Dynamic Range through a multi-exposure process, capturing more detail in both highlights and shadows within the same scene. This allows for easy distinction of objects and features, including faces in bright backlit conditions. Its dynamic range is measured using Opto-Electronic Conversion Function (OECF) analysis, adhering to IEC 62676 Part 5 standards, enabling straightforward camera comparisons.

**Advanced Content-Based Imaging Technology**
Content-Based Imaging Technology (CBIT) significantly enhances image quality across various lighting conditions by identifying and improving specific image areas. Using Intelligent Video Analytics, the camera adapts image processing to deliver sharper detail where needed, enhancing overall performance. Intelligent Auto Exposure, for example, supports clear visibility of moving objects in both bright and dim areas.

**Intelligent Video Analytics**
The integrated video analytics system is robust and smart, adopting the Intelligence-at-the-Edge approach to offer enhanced features including:

– Simple calibration
– False alarm reduction
– Extended range identification
– Crowd and queue management
– Density and flow counting

Designed for mission-critical scenarios, the intelligent video analytics consistently detects, tracks, and analyzes objects, triggering alerts for predefined conditions. A comprehensive set of alarm rules, object filters, and tracking modes simplifies complex surveillance tasks.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F
Minimum Operating Temperature-4°F
Operating Humidity93%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/15000 Second

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberNBN-75023-BA
Packaged Quantity1
Product LineDINION IP
Product ModelNBN-75023MP-BA
Product NameFixed camera2 mPMP HDR24 mPV
Product Series7000
Product TypeIP Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Lens IncludedNo

Miscellaneous
Environmental CertificationChina RoHS, WEEE
Environmentally FriendlyYes
FeaturesAudio Detection, Auto Gain Control, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Dynamic Noise Reduction, Enter/Exit Detector, ePTZ, Privacy Masking, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/OutdoorIndoor
Package Contents1C/CS Mount adapter ring for mounting a lens with a C-Mount, 1Data/Alarm connector (12Pins), 1DINION camera, 1Identification label sheet, 1Installation Guide, 1Power connector (2Pins), 1Sensor protection cap (Mount on camera)

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyGray
Form FactorBox Mount
Height2.6"
Product ColorMetallic Titanium
Weight (Approximate)1-85 lb
Width3.1"

Power Description
Input Voltage24V AC

Product Information
Length5.5"
Mount TypeBracket Mount, Ceiling Mount, Junction Box Mount, Pole Mount, Tripod Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
HD RecordingYes
Lens Mount TypeCS Mount
Maximum Frame Rate60fps
Video Signal FormatNTSC, PAL

Video
Analog Video Signal FormatCVBS
