Description

The relentless pace of urban life results in a continuous flow of people and vehicles on city streets at all hours. As surveillance networks expand to keep up with urban growth, security operators can become overwhelmed with data, as traditional surveillance cameras using motion-based detection generate excessive event alarms. This overload puts operators under substantial pressure to verify each alert, potentially causing delays in response times. However, AI algorithms integrated into P series AI cameras offer a significant boost in operator efficiency. These AI cameras feature the BestShot capability, ensuring only the most relevant images of classified objects are sent to the backend server. Full video can be captured in up to 4K resolution, providing detailed views of objects and accompanying tagged attributes metadata. Users have the flexibility to adjust the image resolution to less than 4K for full video streaming or to utilize BestShot to reduce bandwidth and storage needs.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature14°F
Operating Humidity

Exposure
Longest Shutter Speed1/5 Second
Minimum Illumination0.003 lux
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberPNB-A9001
Product ModelPNB-A9001

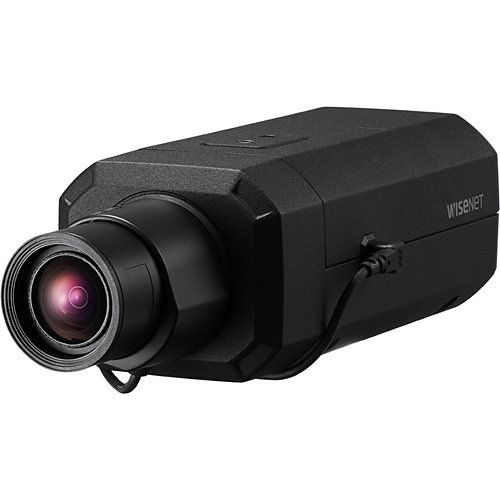

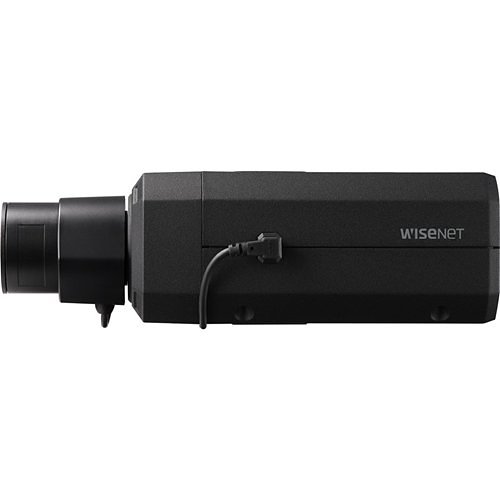

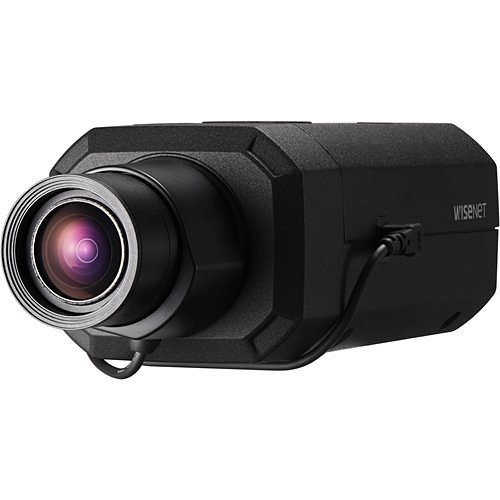

Product Name4K Network Box AI camera
Product SeriesP
Product TypeBox Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Lens IncludedNo

Miscellaneous
Features0.03Lux at F1.2 (Color), 0.003Lux at F1.2 (B/W), 30fps at all resolutions (H.265/H.264), 4K/8 MP (3840 x 2160) resolution, Day and Night (ICR), WDR (120dB), P-Iris, Digital image stabilization with built-in Gyro sensor, Face mask detection, loitering, directional detection, audio detection, sound classification, tampering, shock detection, H.265, H.264, MJPEG codec supported, multiple streaming, Motion detection, PTZ Handover, audio event playback, digital auto tracking, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Video Analytics based on AI
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack
Color FamilyBlack
DurabilityDustproof, Waterproof
Form FactorBox Mount
Height4"
Product ColorBlack
Weight (Approximate)1.94 lb
Width1"

Power Description
Input Voltage12V DC

Product Information
Mount TypeDesktop Mount, Rack Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
HD RecordingYes
Lens Mount TypeC-Mount, CS-Mount
Maximum Frame Rate30 fps

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Year
