Description

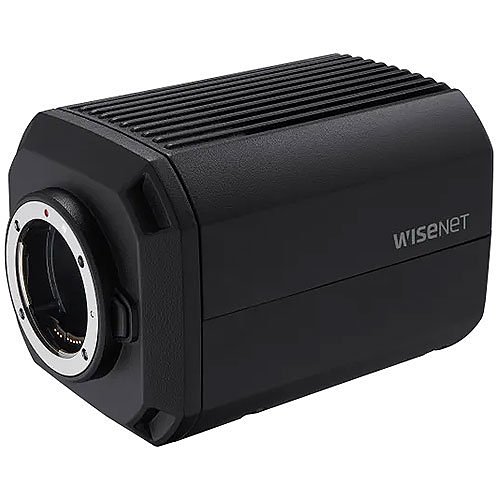

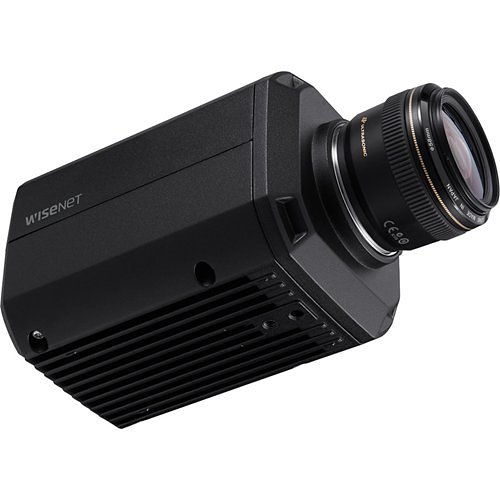

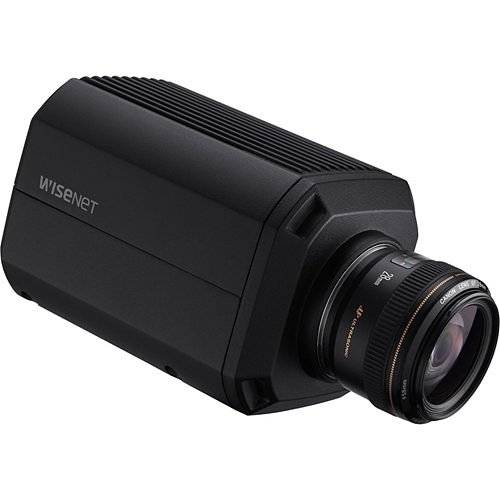

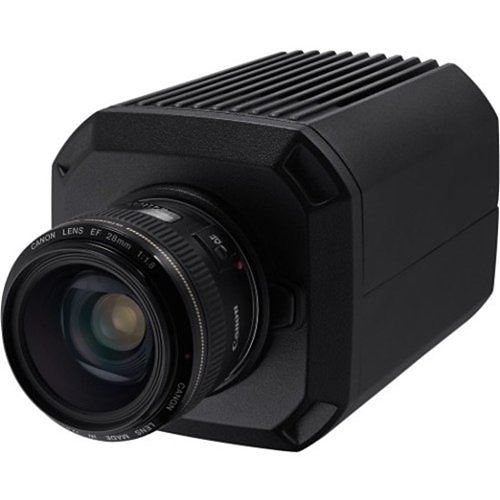

8K Resolution Surveillance Camera

The TNB-9000 stands as the pinnacle of performance and resolution in the Wisenet portfolio, offering unparalleled image quality. Its advanced digital zoom capabilities allow for focused examination of any image area without detail loss, providing a compelling alternative to conventional multi-camera systems.

Ideal for Large Venues

Equipped with a full-size 36mm CMOS sensor, the TNB-9000 delivers true 8K imagery at up to 15fps, making it an ideal choice for large venues like stadiums and airports where deploying multiple cameras can be challenging or expensive. Supporting EF (Electro Focus) mount lenses with remote focus capabilities, it offers users exceptional flexibility in lens selection and superior low-light performance.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution7680 x 4320

Environmental Conditions
Maximum Operating Temperature122°F
Minimum Operating Temperature32°F
Operating Humidity

Exposure
Longest Shutter Speed1/20000 Second
Minimum Illumination0.0015 lux
Shortest Shutter Speed1/5 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberTNB-9000
Product ModelTNB-9000
Product Name8K AI Box Camera
Product SeriesT
Product TypeBox Camera

Interfaces/Ports
HDMIYes
Network (RJ-45)Yes

Miscellaneous
FeaturesAlarm Triggering, Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack
Color FamilyBlack
Depth7.05"
Form FactorBox Mount
Height4.65"
Product ColorBlack
Weight (Approximate)4.55 lb
Width4.72"

Power Description
Input Voltage12V DC

Product Information
Mount TypeEF Mount

Storage
Recording Formats8K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
HD RecordingYes
Lens Mount TypeEF Mount
Maximum Frame Rate30 fps
