Description

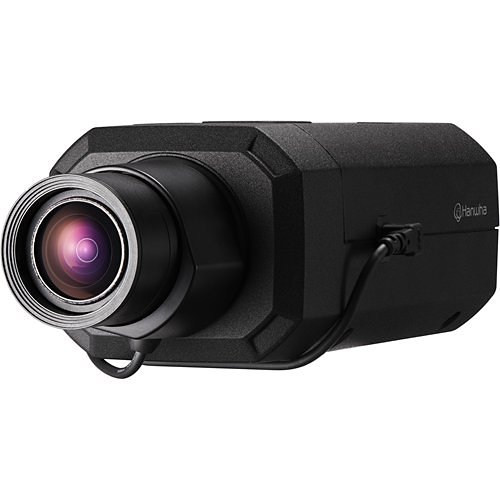

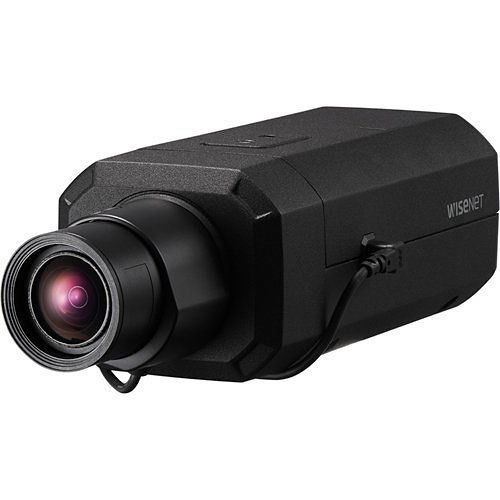

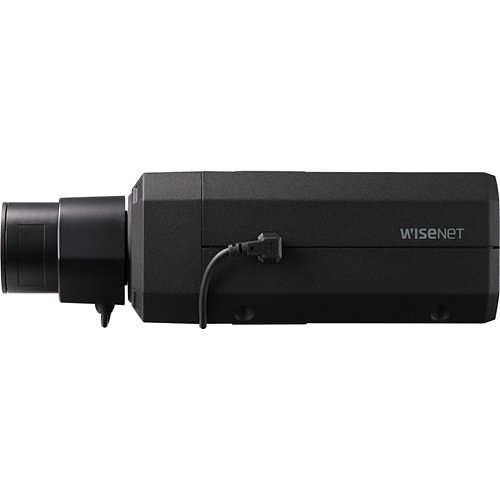

Wisenet X, featuring the state-of-the-art Wisenet 7 chipset, offers a high-performance network box camera ideal for surveillance applications. It provides effortless access to all connection ports and delivers stunning 4K resolution at 30fps. With support for H.265, H.264, and MJPEG formats, this camera utilizes WiseStream II compression technology to optimize bandwidth efficiency. The device excels in challenging lighting conditions thanks to extremeWDR capabilities, and its USB port facilitates straightforward installation. Enhanced video analytics and sophisticated sound classification add to its feature set, while true day/night functionality and dual SD card slots ensure reliable storage and operation. Additional features include hallway view, high light compensation (HLC), defocus detection, defog detection, and digital image stabilization (DIS). The camera supports power via 12VDC, 24VAC, or PoE, and comes with robust built-in cybersecurity measures for protection against threats.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature14°F
Operating Humidity95% RH (Non Condensing)

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.005 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXNB-9002
Product ModelXNB-9002
Product Name4K Box Camera
Product SeriesX
Product TypeBox Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length8 mm
Lens IncludedYes
Maximum Focal Length8.40 mm
Minimum Aperturef/1.2

Miscellaneous
FeaturesAudio Detection, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tampering Alarm
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack
Color FamilyBlack
Depth6.48"
Form FactorBox Mount
Height2.64"
Product ColorBlack
Weight (Approximate)1.94 lb
Width3.19"

Power Description
Input Voltage12V DC, 24V AC

Product Information
Mount TypeC-Mount, CS-Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewH: 114°(Wide)~40.2°(Tele) V: 62.0°(Wide)~22.5°(Tele) D: 133.0°(Wide)~46.3°(Tele)
HD RecordingYes
Lens Mount TypeCS Mount
Lens TypeDC Auto Iris, I-CS, Manual, P-iris
Maximum Aperturef/2.8
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Optical Zoom3x

Video
Analog Video Signal FormatCVBS
