Description

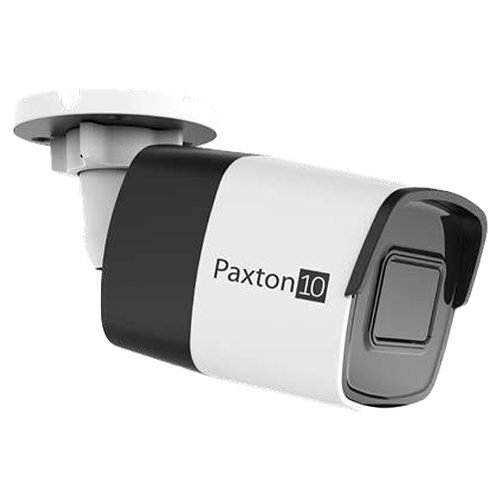

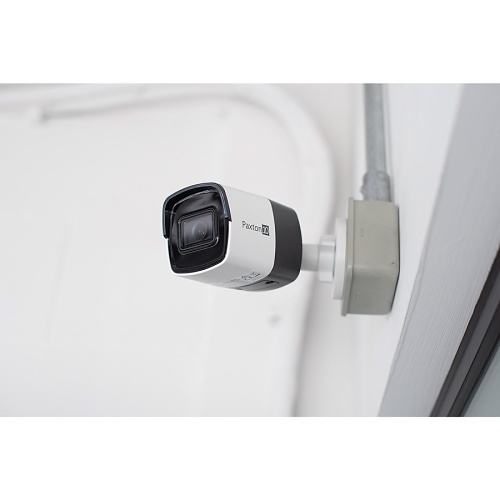

Product Overview – The Paxton10 Mini Bullet Camera Pro, integrated with advanced video management software, is designed to suit varied environments. It’s perfect for wall installations where surveillance cameras act as strong deterrents. Video footage is saved onto the camera’s internal SD card, with options to store recordings on an external network storage. For storage planning on your system, utilize the Paxton10 Video Storage Calculator to estimate the storage needs per camera. The camera comes with additional features like a 2.8-12mm vari-focal lens and 128GB storage capacity.

Installation Guidelines – Paxton10 Cameras leverage cutting-edge technology along with sophisticated video management software, eliminating the need for tedious configuration processes. These network-ready cameras are powered via TCP/IP and are instantly detectable within the software’s devices menu. Simply add the camera and assign a name to finalize setup. No extra setup steps are necessary.

Functional Capabilities – The cameras are equipped with a suite of robust video management features, including:

  • ‘Live View’ and access to recorded footage
  • Seamless video export
  • High-speed video scrubbing
  • Bookmarking of key moments
  • Intelligent search functionality
  • Advanced motion detection
Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)

General Information
Brand NamePaxton
ManufacturerPaxton Access Ltd.
Manufacturer Part Number010-158-US
Product LinePaxton10
Product NamePaxton10 Mini Bullet Camera - PRO Series
Product SeriesPro
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)No

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
FeaturesBuilt-in Card Reader, Day/Night, Motion Detection, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Depth6.7"
DurabilityDustproof, Impact Resistant, Waterproof, Weather Resistant
Form FactorMini Bullet
Height2.7"
Weight (Approximate)1.10 lb
Width2.8"

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHorizontal field of view: 102° Vertical field of view: 55° Diagonal field of view: 120°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate20 fps
Minimum Focal Length2.8 mm
Night VisionYes
Video Signal FormatNTSC, PAL

Warranty
Limited Warranty5 Year
