Description

**Overview**

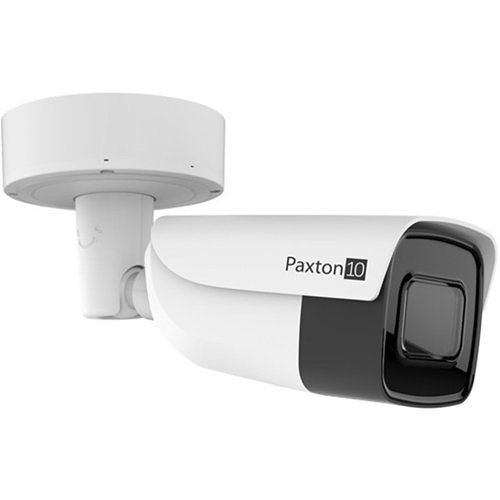

The Paxton10 Vari-Focal Bullet Camera, equipped with advanced video management software, is ideal for diverse surveillance environments. Particularly suited for wall mounting, this security camera acts as an effective deterrent. Footage is stored on the camera’s integrated SD card, with options to save recordings on an external network drive as well. A Video Storage Calculator is available to help determine necessary storage space for each camera in your Paxton10 surveillance system. Additionally, a Mini 2.8mm fixed lens variant is offered.

**Installation**

The Paxton10 Cameras feature state-of-the-art technology alongside proprietary video management software, streamlining the installation process. These cameras connect directly to the network and are powered via TCP/IP, appearing in the Paxton10 Software under the devices menu without the need for additional configuration. Simply add the camera to the system and assign a name.

**Operation**

Paxton10 Cameras offer a comprehensive suite of video management features, including:

– ‘Live View’ and recorded footage
– Video export capabilities
– High-speed scrubbing
– Bookmarking
– Smart search functionality
– Motion detection
– And more…

Camera
Night Vision Distance196.85 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)

General Information
Brand NamePaxton
ManufacturerPaxton Access Ltd.
Manufacturer Part Number010-924-US
Product LinePaxton10
Product NamePaxton10 Vari-Focal Bullet Camera - PRO Series
Product SeriesPro
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)No

Lens
Focal Length12 mm
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
FeaturesBuilt-in Card Reader, Day/Night, Motion Detection, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorBullet
Height11.7"
Weight (Approximate)2.99 lb
Width4.1"

Power Description
Input Voltage12V DC

Product Information
Diameter4.1"
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHorizontal field of view: 108° to 30°, Vertical field of view: 56° to 17°, Diagonal field of view: 131° to 35°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate20 fps
Minimum Focal Length2.8 mm
Night VisionYes
Optical Zoom4.3x
Video Signal FormatNTSC, PAL

Warranty
Limited Warranty5 Year
