Description

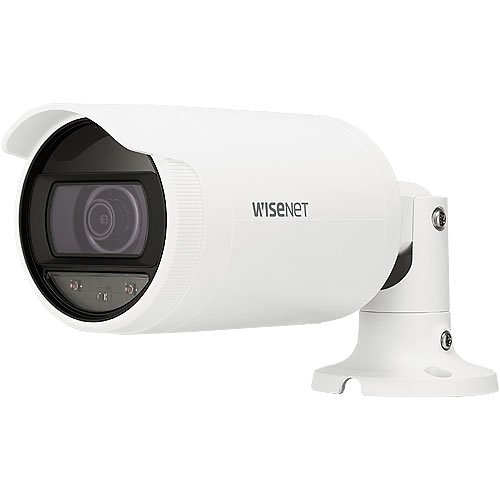

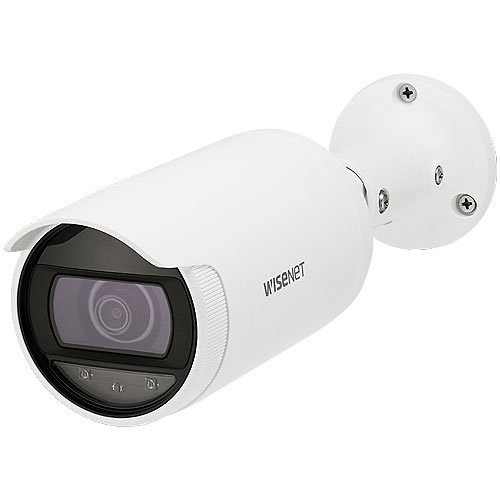

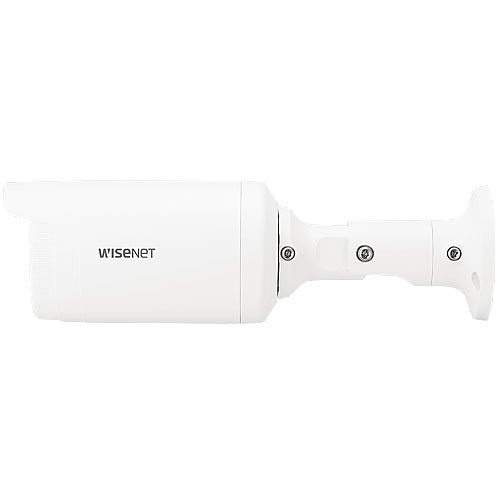

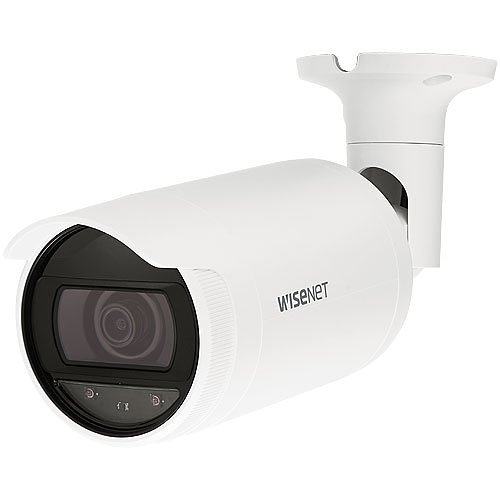

This network outdoor bullet camera features advanced specifications such as a 4MP resolution at 30fps and a 4mm fixed focal lens. It supports triple codecs: H.265, H.264, and MJPEG, enhanced by Wisestream II technology for efficient streaming. The camera offers 120dB wide dynamic range (WDR) and is equipped with infrared (IR) LEDs with a range of 98 feet, making it ideal for low-light conditions. Key features include motion detection and tampering alerts, a specialized hallway view mode, and support for SD card storage up to 32GB. With an IP66 weatherproof rating and IK10 vandal resistance, along with Power over Ethernet (PoE) for easy installation, this camera is designed for robust outdoor security applications.

Camera
Night Vision Distance82.02 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1440

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberANO-L7022R
Product ModelANO-L7022R
Product Name4MP IR Bullet
Product SeriesA
Product TypeBullet Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4 mm
Lens IncludedYes
Maximum Focal Length4 mm

Miscellaneous
Features4mm lens w/ 78.2° HFoV, 4MP resolution, Up to 30fps(H.265/H.264), Color - 0.1Lux (F1.6, 1/30sec), B/W - 0Lux (IR LED On), Day and Night (ICR), WDR (120dB), Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, H.265, H.264, MJPEG, Multiple streaming supported, Hallway view (90°/270°), LDC support, WiseStream II, IR viewable length - 25m, Micro SD/SDHC/SDXC memory slot (Max. 128GB)
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorBullet
Product ColorWhite
Weight (Approximate)0.86 lb

Product Information
Diameter3.07"
Mount TypeBackbox Mount, Corner Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewH: 78.3°, V: 42.9°, D: 91.2°
HD RecordingYes
Lens TypeFixed Focus
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Night VisionYes
Night Vision TypeInfrared
