Description

**System Overview**

This advanced surveillance camera is designed for comprehensive outdoor security solutions, offering powerful optical zoom capabilities for capturing distant scenes. Equipped with infrared illumination and cutting-edge Starlight technology, it excels in dark and low-light environments. The camera series integrates a day/night mechanical IR cut filter to ensure superior image quality in varying daytime lighting conditions, and leverages True Wide Dynamic Range (WDR) technology for areas with intense sunlight or glare.

**Key Features**

**Starlight Technology**

For challenging low-light conditions, the Starlight Ultra-low Light Technology provides exceptional light sensitivity, capturing detailed color images in environments as dim as 0.005 lux. The camera employs advanced optical features to effectively balance light throughout each scene, delivering clear images even in very dark settings.

**Wide Dynamic Range (WDR)**

Experience brilliant image quality in high-contrast lighting scenarios with our industry-leading WDR technology. Ideal for environments with both bright and low-lit areas that change rapidly, True WDR (120 dB) optimizes exposure across the bright and dark parts of a scene simultaneously for enhanced usability.

**Smart H.265+**

Smart H.265+ technology enhances the H.265 codec using adaptive encoding strategies, dynamic GOP, dynamic ROI, flexible multi-frame reference structures, and intelligent noise reduction to deliver high-quality video while minimizing network load. Compared to standard H.265 compression, Smart H.265+ reduces bit rate and storage needs by up to 70%.

**PFA Technology**

Our innovative PFA technology introduces cutting-edge methods for accurate subject distance adjustment and direction prediction using advanced focusing algorithms. This ensures image clarity throughout zoom processes and significantly reduces focusing time, substantially improving user experience and boosting product value.

**Environmental Durability**

This camera is engineered to function in harsh environments, operating within a temperature range of -40 °C to +60 °C (-40 °F to +140 °F) with 95% humidity. It undergoes strict dust and water immersion testing and is certified to the IP68 Ingress Protection rating, making it ideal for robust outdoor applications.

Camera
Image Sensor TypeCMOS
Night Vision Distance328 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP68

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/1 Second
Shortest Shutter Speed1/30000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberDH-EPC230U
Product LineWizSense
Product ModelDH-EPC230U

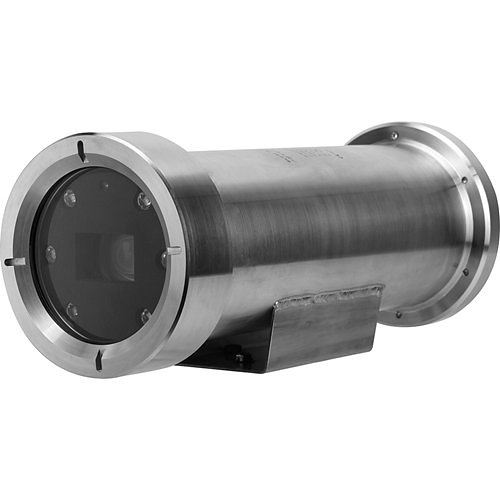

Product Name2MP 30x Explosion-proof IR Network Camera
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.5 mm
Lens IncludedYes
Maximum Focal Length135 mm
Minimum Aperturef/1.6

Miscellaneous
Country of OriginCN
FeaturesBack Light Compensation (BLC), Built-in Card Reader, Built-in HLC, Day/Night, Electronic image stabilization, Face Detection, Motion Detection, Noise Reduction, Privacy Masking, Region of Interest
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack
DurabilityDustproof, Explosionproof, Waterproof
Form FactorBullet
Weight (Approximate)19.18 lb

Product Information
Diameter15.6"
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 67.8° ~ 2.4°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/4.4
Maximum Frame Rate60 fps
Minimum Focal Length4.5 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs6
Optical Zoom30x
Video FormatsH.264, H.265
Video Signal FormatNTSC, PAL

Warranty
Limited Warranty5 Year
