Description

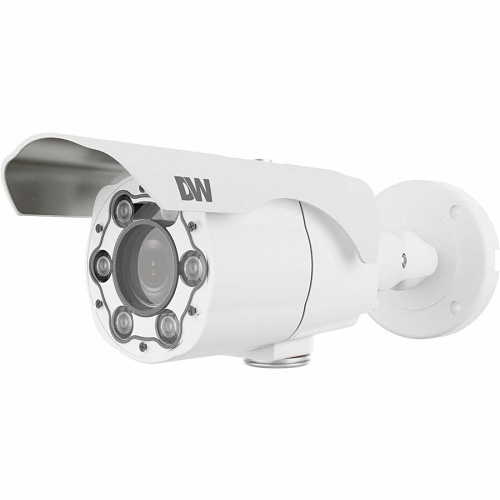

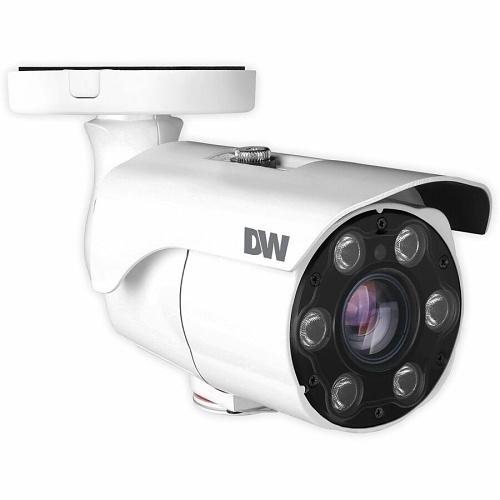

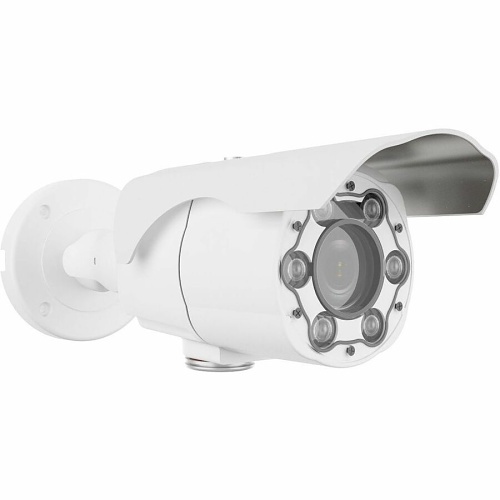

This advanced IP surveillance camera combines cutting-edge intelligent video analytics with NDAA compliance, delivering crisp video clarity at 5MP resolution and a smooth 30fps. Equipped with robust technology for real-time detection and classification of people, vehicles, and objects, it offers sophisticated video content analytics supported by logical rules. Enjoy the flexibility of a 6~50mm long-range vari-focal auto-focus lens featuring motorized zoom, coupled with seamless H.265/H.264/MJPEG codec compatibility for simultaneous streaming. The camera utilizes Star-Light Plus technology to capture vibrant color imagery even in near-total darkness, all housed in an IP66-rated weather-resistant bullet design. Fully ONVIF conformant, it ensures seamless integration with a variety of open platform solutions in the market.

**Key Features:**

– High-performance 5MP 1/2.8″ image sensor at 30fps
– Star-Light Plus technology for enhanced low-light color imaging
– Advanced Intelligent Video Analytics (IVA) with Video Content Analysis
– Optimize recording storage with logical IVA rules and smart recording
– Versatile 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
– True Wide Dynamic Range (WDR) for balanced lighting
– Triple codec support (H.265, H.264, MJPEG) for concurrent streaming
– Operational capability from cold start at -40°F (-40°C)
– 140′ Smart IR with intelligent sync functionality
– Smart DNR™ 3D digital noise reduction technology
– True day/night functionality with mechanical IR cut filter
– Customizable privacy zones for enhanced security
– Auto gain control (AGC), backlight compensation (BLC), and auto white balance (AWB)
– Motion detection and two-way audio capabilities
– Micro SD/SDHC/SDXC class 10 card slot (card not included)
– Integrated alarm sensor input and relay output
– Power over Ethernet (PoE) class 3 and DC12V options
– Certified UL Listed and NDAA compliant
– IP66-rated for dust and water resistance, IK 9-rated impact resistance
– Backed by a 5-year warranty

Camera
Night Vision Distance140 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWCMPB45WI650TW
Product LineMEGApix
Product ModelDWC-MPB45WI650TW
Product Name5MP color in near-total darkness long-range bullet IP camera with IVA+
Product SeriesMB45
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length6-50 mm
Lens IncludedYes
Maximum Focal Length50 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, HTTPS Encryption, Motion Detection, Privacy Masking, SD Card Local Storage
Impact Protection RatingIK09
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number Replaces6K-MPB45WI65
Model Number ReplacesDWC-MPB45WI650T

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Waterproof, Weather Resistant
Form FactorBullet
Weight (Approximate)1.98 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View40.8° ~ 6.9° / 30.2° ~ 5.2°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length6 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom8.3x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty5 Year
