Description

### Line Crossing Detection
Upon breaching a specified boundary from any direction, an immediate security alert is transmitted.

### Perimeter Intrusion Detection
When a designated zone is established, any movement across its boundaries, whether entering, exiting, or both, will activate an alarm system.

### Video Tampering Detection – Abnormal Color Detection
If there is an alteration in the camera’s color output, a security alert is generated.

### Video Tampering Detection – Scene Change
A notification is sent if the camera is repositioned, resulting in a change in the Field of View (FoV).

### Video Tampering Detection – Video Blur
A sudden blurriness or decrease in visibility triggers an event notification.

### Smart IR Technology
Smart IR Technology dynamically adjusts infrared cameras to prevent overexposure and deliver detailed black-and-white images by preventing excessive illumination on nearby objects.

### True Wide Dynamic Range (WDR)
Cameras featuring True Wide Dynamic Range (WDR) technology leverage advanced sensors to handle varying light conditions, capturing both dark and bright areas within the same frame effectively.

### H.265 Codec Support
The H.265 High-Efficiency Video Coding standard offers vastly improved data compression rates, enhancing storage efficiency by 25% to 50% while preserving video quality.

Camera
Night Vision Distance164 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1440

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/2 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-VSBD04MI
Product LineMEGApix
Product ModelDWC-VSBD04Mi

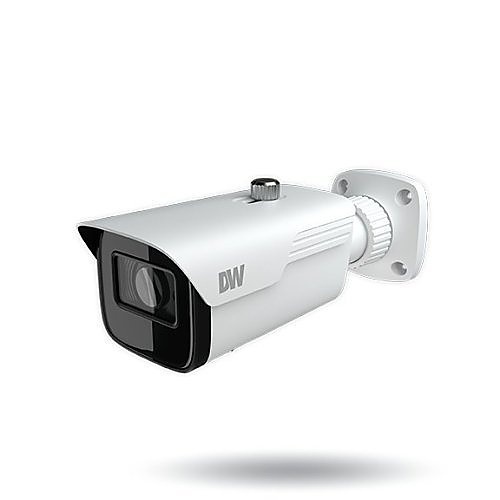

Product NameMEGApix 4MP bullet IP camera with vari-focal lens and IR
Product SeriesV-Class
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Auto Flip, Back Light Compensation (BLC), Defog, Dual Stream, Mirror, Motion Detection, Multi-view Stream, Noise Detection, Privacy Masking, Tamper Detection, Video Management System
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth2.8"
DurabilityDustproof, Impact Resistant, Waterproof, Weather Resistant
Form FactorBullet
Height8.7"
Product ColorWhite
Weight (Approximate)1.52 lb
Width3.2"

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Wall Mount

Storage
Recording Formats2K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewHorizontal Field of View (HFOV) 92°~31°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.80 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty5 Year
