Description

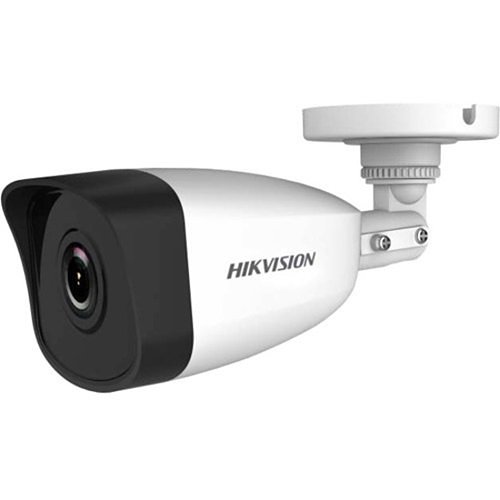

The Hikvision ECI-B12F Outdoor IR Bullet Camera delivers high-definition IP video output, ideal for surveillance applications. It incorporates H.264+ video compression technology, ensuring efficient bandwidth and storage utilization.

– Features minimum illumination of 0.028 Lux in color with f/2.0, AGC on
– Supports resolutions up to 1920 x 1080
– Available with 2.8 mm, 4 mm, and 6 mm fixed lens options
– Compatible with H.264+/H.264/MJPEG formats
– Main stream offers 30 fps at 1920 × 1080, 1280 × 960, or 1280 × 720
– Integrated EXIR 2.0 technology provides up to 100 ft (30 m) IR range
– Operates on 12 VDC ± 25% or via PoE IEEE802.3 af, with a maximum power consumption of 5 W

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberECI-B12F2
Product ModelECI-B12F
Product NameECI-B12F 2 MP Outdoor EXIR Network Bullet Camera
Product SeriesValue Express
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Waterproof
Form FactorBullet
Height2.6"
Weight (Approximate)9.88 oz
Width71.4"

Power Description
Input Voltage12V DC

Product Information
Diameter2.7"
Length7.5"
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
HD RecordingYes
Lens TypeFixed
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes

Warranty
Limited Warranty3 Year
