Description

The ExSite Enhanced 2 Series is specifically designed for monitoring operations and managing processes in high-risk hazardous locations prone to explosive environments caused by flammable liquids, gases, or dust. These robust outdoor surveillance cameras are available in fixed, compact fixed, and PTZ models, ensuring compliance with rigorous explosion-proof and dust-ignition-proof standards. They adhere to international safety protocols, including UL, CSA, ATEX, IECEx, and EACEx, making them ideal for industrial surveillance applications.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP68, IP69

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution3200 x 1800

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/7 Second
Shortest Shutter Speed1/8196 Second

General Information
Brand NamePelco by Motorola Solutions
ManufacturerSchneider Electric SA
Manufacturer Part NumberEXC2602-62
Product LineExSite
Product ModelEXC2602-62

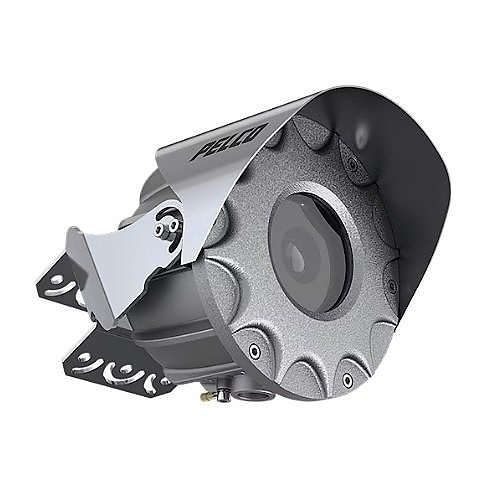

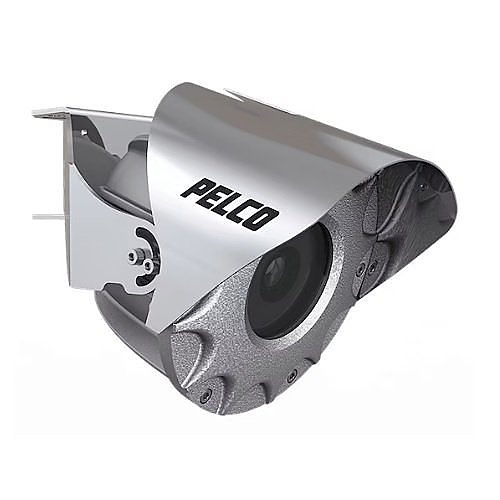

Product NameExSite Enhanced 2 Explosionproof Fixed Compact Camera System
Product SeriesExSite Enhanced 2
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.9-8 mm
Lens IncludedYes
Maximum Focal Length8 mm

Miscellaneous
Features3D Digital Noise Reduction, Back Light Compensation (BLC), Day/Night, Motion Detection, PTZ, Rugged Design, Vehicle Detection, Video Content Analytics, Video Management System, Wide Dynamic Range
Indoor/OutdoorOutdoor
Package Contents 2x EXC2602 fixed compact cameras 2x EXF2230 fixed cameras with 2x washer pump 1x EXP2230 PTZ camera with 1x washer pump

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorSilver
Color FamilySilver
DurabilityDustproof, Explosionproof, Waterproof, Wind Resistant
Height7"
Product ColorSilver
Weight (Approximate)14.33 lb
Width7"

Power Description
Input Voltage24V AC, 24V DC

Product Information
Length10"
Mount TypeBracket Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution6MP
Field of ViewHorizontal Angle of View (16:9) 50°-91° , Vertical Angle of View (16:9) 29°-51°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.8
Maximum Frame Rate30 fps
Minimum Focal Length4.90 mm
Optical Zoom1.6x
