Description

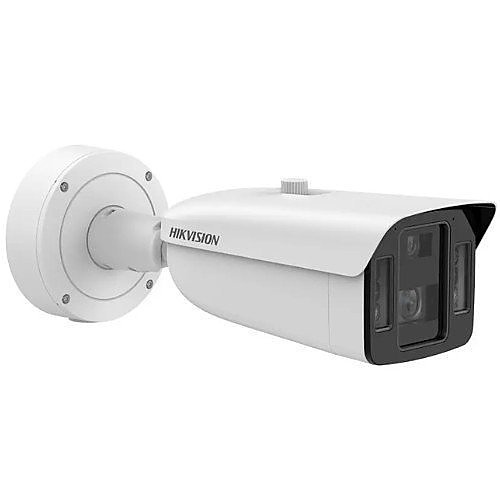

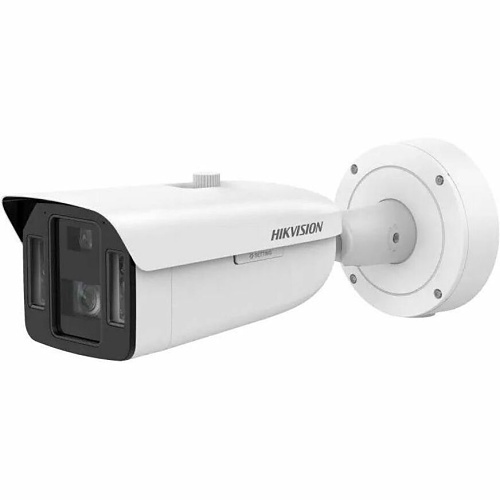

The iDS-2CD8A86G0-XZHSY camera enhances Hikvision’s TandemVu series by introducing bullet-shaped models, diversifying beyond the PTZ camera offerings. This advanced surveillance camera excels at simultaneously monitoring expansive scenes and capturing detailed close-ups, as indicated by its sophisticated design. Powered by high-performance GPUs and deep-learning algorithms, the iDS-2CD8A86G0-XZHSY offers dual-channel synchronous computing, ensuring optimized situational awareness and elevated security standards.

Key switchable Deep Learning functionalities include:

**Face Capture and Image Comparison**
Leveraging deep learning algorithms, this camera dynamically adjusts face area exposure to deliver superior-quality face images.

**Perimeter Protection**
Utilizing deep learning-based target detection and classification, the camera effectively monitors activities such as line crossing, intrusion, region entry, and region exit for robust perimeter security.

**Multi-target Type Recognition**
With embedded deep learning capabilities, the camera proficiently detects and captures faces, human bodies, and vehicles within designated areas.

**Road Traffic and Vehicle Detection**
Equipped with deep learning-based license plate capture and recognition technology, the camera independently identifies plates and categorizes them into block and allow lists for distinct alarm triggers.

Camera
Night Vision Distance393.70 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberIDS-2CD8A86G0-XZHSY
Product LineDeepinView
Product ModeliDS-2CD8A86G0-XZHSY
Product Name8 MP DeepinView Multi-sensor (TandemVu) Bullet Camera
Product SeriesDeepinview
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4 mm
Lens IncludedYes
Maximum Focal Length50 mm

Miscellaneous
Environmental CertificationREACH, RoHS, WEEE
Environmentally FriendlyYes
FeaturesBuilt-in Microphone, Cross Line Detection, Day/Night, Human Detection, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Tampering Alarm, Vehicle Detection, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Impact Resistant, Vandalproof, Waterproof
Form FactorBullet
Product ColorWhite
Weight (Approximate)4.85 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter5.5"
Mount TypeCorner Mount, Junction Box Mount, Pole Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of Viewhorizontal FOV 36° to 13.1°,vertical FOV: 20.4° to 7.4°,diagonal FOV 41.8° to 14.9°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length10 mm
Night VisionYes
Night Vision TypeInfrared/Color

Video
Analog Video Signal FormatCVBS
