Description

**System Overview**

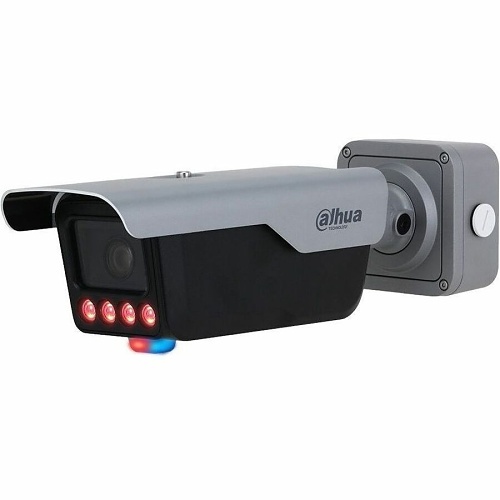

Harnessing advanced deep learning algorithms, the Smart ANPR Camera excels at recognizing vehicles, license plates, vehicle brands, and colors, proving indispensable in scenarios requiring sophisticated vehicle detection and recognition. It integrates Intelligent Video Surveillance (IVS) technology to identify events and trigger sound and light alarms. Functionally autonomous, this camera enhances the security infrastructure of industrial sites and compounds while streamlining the installation process. Built to last, the camera boasts IP67 and IK10 ratings, making it dustproof, waterproof, and tamper-resistant.

**Functions**

**Vivid Images**

Equipped with an advanced CMOS image sensor, the camera offers Wide Dynamic Range (WDR) capabilities, high signal-to-noise ratio, and superior sensitivity, delivering vivid, high-quality images around the clock. This makes it ideal for deployment in the traffic management and monitoring sector.

**Impressive Performance**

The high-performance CPU processor efficiently extracts and analyzes real-time data from both motorized and non-motorized vehicles, offering valuable insights into vehicle attributes. This data is crucial for informed decision-making in traffic regulation and enforcement.

**High-level Protection**

Designed for durability and versatility, the camera incorporates an illuminator, junction box, and other essential components within its robust structure. It offers an IP67 rating and low power consumption, rendering it suitable for operation in harsh environments.

**Easy Installation**

Perfect for license plate recognition applications, the camera can detect over ten different traffic violations and supports comprehensive traffic data collection and event detection, making it suitable for various road scenarios.

**Multi-dimensional Data Sensing**

This camera facilitates straightforward installation and operation, featuring an LED illuminator and a motorized vari-focal lens integrated into its design, optimizing its efficiency in multi-dimensional data sensing.

Camera
Image Sensor TypeCMOS
Night Vision Distance32.81 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution2688 x 1520

Environmental Conditions
Maximum Operating Temperature149°F (65°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/25 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberITC413PW4DZ1
Product LineWizMind
Product ModelDHI-ITC413-PW4D-Z1
Product NameDahua Access ANPR Camera
Product SeriesDHI-ITC413-PW4D
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
Country of OriginCN
FeaturesBack Light Compensation (BLC), Built-in Microphone, Built-in speaker, Day/Night, Gain Control, Highlight Compensation (HLC), Region of Interest, Remotely Operated, Vehicle Detection, White Balance, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesVD-ITC215ZFB
Model Number ReplacesITC215-PW6M-IRLZF-B

Physical Characteristics
DurabilityDustproof, Impact Resistant, Tamperproof, Waterproof
Height5"
Weight (Approximate)5.07 lb
Width4.8"

Power Description
Input Voltage12V DC

Product Information
Length15.6"
Mount TypeDesktop Mount, Rack Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Field of ViewH: 92° (W)-46.1° (T) V: 49° (W)-26.0° (T) D: 109° (W)-52.8° (T)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.70 mm
Night VisionYes
Night Vision TypeInfrared/Color
Optical Zoom4.4x
Video FormatsH.264M, H.265, MJPEG
