Description
**System Overview**

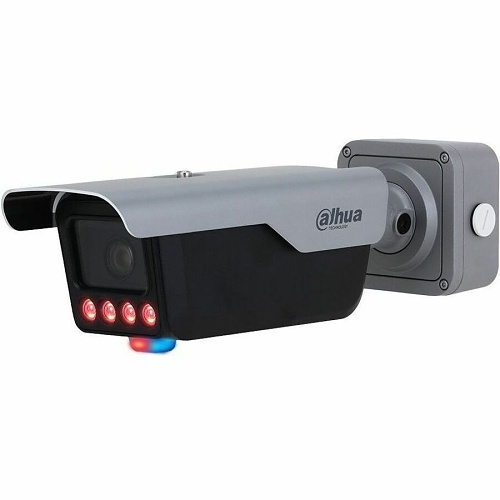

The ITC413-PW4D-Z3 is a high-performance license plate recognition camera designed for traffic management and surveillance solutions. It boasts a 4MP resolution of 2688 x 1520 at 30 frames per second, powered by a 1/1.8-in. CMOS sensor. Featuring an 8 mm to 32 mm vari-focal lens, it allows precise zoom adjustment for a horizontal field of view ranging from 39.9° to 15.1°. Capable of capturing and identifying license plates of vehicles moving at speeds up to 120 kph (75 mph), this advanced surveillance camera can be installed at a distance of 8 m to 20 m (26.25 ft to 65.62 ft) from the roadway. When integrated with a Dahua NVR or DSS Video Management System, it provides a comprehensive solution for traffic surveillance and parking management.
**Functions**
**License Plate Recognition**
This advanced surveillance camera automatically captures and processes images of vehicle license plates, recognizing alphanumeric characters. Users can search by Time and Date during playback to view all plates recorded within a specified period or enter a specific license plate number to retrieve relevant footage. This technology is essential for effective monitoring of entry and exit points, traffic safety, and parking facilities.
**High Efficiency Video Coding (H.265)**
The H.265 video compression standard enhances data compression efficiency, providing twice the compression ratio of previous technologies at the same video quality level or considerably improving video quality at the same bit rate. It achieves this through advanced pattern comparison, difference coding, improved motion vector prediction and merging, and incorporates sample-adaptive offset filtering for enhanced quality.
**Active Alarm**
Equipped with active alarm capabilities, the camera can automatically respond to triggered alarms with customizable actions, such as activating red/blue lights and broadcasting pre-recorded messages or sirens.
**Starlight+ Technology**
In challenging low-light conditions, the Starlight Ultra-low Light Technology offers superior light sensitivity, capturing detailed images in dim environments. This is achieved through a suite of optical features that ensure balanced lighting across the scene.
**Cybersecurity**
Dahua network cameras are fortified with enhanced cybersecurity measures including authentication, access control, trusted protection, and encryption for both data transmission and storage, bolstering defense against unauthorized access and data breaches.
**Environmental**
The ITC413-PW4D-Z3 is built to withstand harsh conditions, meeting the IK10 Vandal Resistance rating, capable of resisting impacts equivalent to 5 kg (11.02 lbs) from 40 cm (15.75 in). It also passes stringent dust and water immersion tests, achieving an IP67 Ingress Protection rating, making it an ideal choice for demanding outdoor environments.
