Description

**WizSense Series Security Solutions**

The WizSense Series security devices integrate cutting-edge analytics with a user-friendly interface. These solutions feature Smart Motion Detection and Perimeter Protection, which prioritize human and vehicle images while ignoring irrelevant footage, enhancing the capture of critical video and minimizing false alarms. Tailored for small to medium-sized businesses, WizSense offers robust security solutions at a competitive price.

**System Overview**

The Three-in-One Camera (TiOC) delivers multiple features for proactive deterrence and efficient low-light monitoring, providing high-resolution video quality. This camera includes advanced Perimeter Protection and Smart Motion Detection for precise analytics. Equipped with Enhanced Starlight Technology, True Wide Dynamic Range, and Smart Dual Illuminators, the camera performs optimally under various lighting conditions and is resilient to challenging environments, thanks to its IP67 rating.

**Functions**

**Active Alarm**

The camera incorporates active alarm capabilities, automatically responding to triggered events. Customizable responses include activating red and blue lights and broadcasting a pre-set message or siren, aiming to prevent incidents proactively.

**Smart Dual Illuminators**

The camera intelligently utilizes IR and white-light illuminators according to the scenario. Typically operating in IR mode in low-light conditions, the camera switches to white-light illumination when it detects a person entering the monitored zone to capture full-color details, reverting to IR once the area is clear.

**Enhanced Starlight Technology**

For environments with minimal light, Enhanced Starlight Technology delivers exceptional light sensitivity, capturing sharp details even in dark settings. The camera optimally balances light across the scene for clear imagery in low-light environments.

**Smart Motion Detection+**

Smart Motion Detection+ enhances alarm accuracy and significantly reduces false alarms using advanced scene analysis to detect human or vehicle movement, filtering out irrelevant motions like trees, weather, or animals. This feature accelerates the process of reviewing footage by allowing quick retrieval of alerts triggered by human or vehicle presence.

**Perimeter Protection**

The technology incorporates Tripwire and Intrusion features, providing customized tripwires based on object types for effective control in restricted areas. The Perimeter Protection requires fewer pixels to effectively detect an object, reducing false alarms caused by environmental factors like lighting, weather, and minor movements.

Camera
Image Sensor TypeCMOS
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberN83BX8Z
Product LineTiOC
Product ModelN83BX8Z

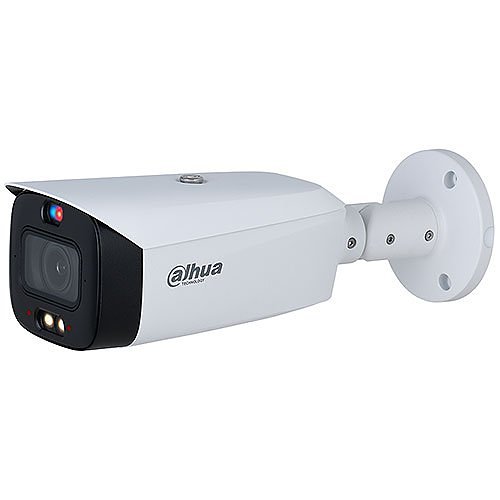

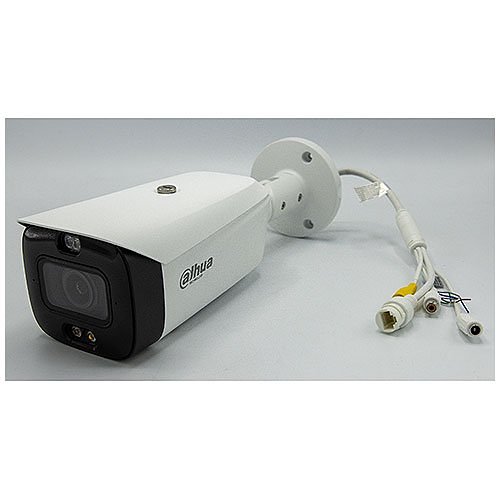

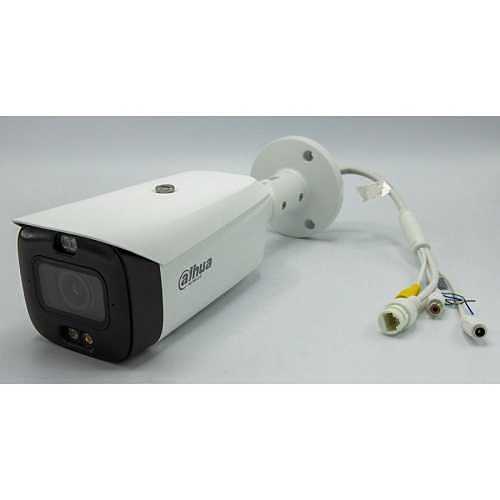

Product Name8MP TiOC Network Bullet Camera (Vari-focal)
Product SeriesLite
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Country of OriginCN
Features3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Day/Night, Highlight Compensation (HLC), Mirror, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Waterproof
Form FactorBullet
Height3.3"
Weight (Approximate)2.31 lb
Width3.7"

Power Description
Input Voltage12V DC

Product Information
Length11.4"
Mount TypeDesktop Mount, Rack Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHorizontal: 108° to 34° Vertical: 56° to 19° Diagonal: 130° to 39°
HD RecordingYes
Lens Mount TypeM16 Mount
Lens TypeVarifocal
Maximum Aperturef/1
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Night VisionYes
Night Vision TypeInfrared/Color
Number of IR LEDs2
Optical Zoom5x
Video FormatsH.264, H.265, MJPEG

Warranty
Limited Warranty5 Year
