Description

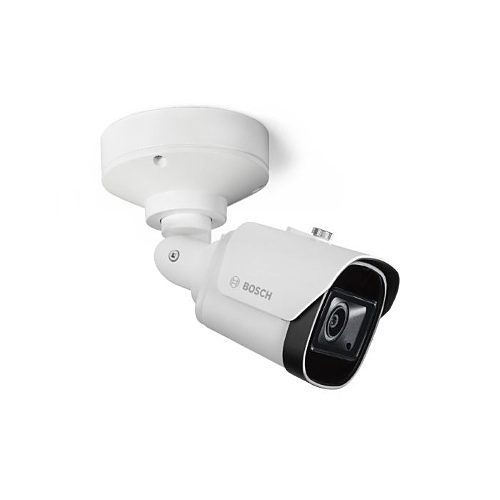

The NBE-3703-AL is a versatile outdoor surveillance solution, designed for general monitoring needs. Its compact design supports discreet deployment and quick setup, maximizing installation flexibility. Featuring a 1/2.7″ sensor and HDR technology, this security camera delivers HD 5 MP resolution. Equipped with an integrated varifocal lens, it ensures sharp, detailed imaging and a flexible field of view. Enhanced with IR functionality, it maintains effective operation even in low-light or no-light environments. The device incorporates built-in IVA Pro Buildings, utilizing advanced deep learning-based detection for reliable event-triggered alarms. It also boasts TPM (Trusted Platform Module) functionality, enhancing security by safely storing certificates and keys for authentication and encryption. Additionally, the camera is rated IK10 and IP66, providing robust protection against vandalism and harsh weather conditions.

Camera
Night Vision Distance1176"

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F
Minimum Operating Temperature22°F
Operating Humidity5-93 %|5-100 %

Exposure
Longest Shutter Speed1/25 s
Shortest Shutter Speed1/15,000 s

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberNBE-3703-AL
Product LineDinion
Product ModelNBE-3703-AL
Product NameBullet 5MP 3.3-10.2mm IP66 IK10 IR
Product Series3100i
Product TypeNetwork Camera

Interfaces/Ports
HDMINo

Lens
Focal Length3.3 mm-10.2 mm
Lens IncludedYes
Maximum Focal Length3.3 mm

Miscellaneous
Environmental CertificationWEEE
Environmentally FriendlyYes
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorBullet
Height9.5"
Weight (Approximate)3.08 lb

Product Information
Diameter4.8"

Storage
Storage TypeMemory Card

Technical Information
Effective Camera Resolution5MP
Field of ViewHorizontal: 101° to 30° Vertical: 70° to 22°
HD RecordingYes
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length10.2 mm
Night VisionYes
Night Vision TypeInfrared

Video
Horizontal Resolution2592
