Brand: Bosch

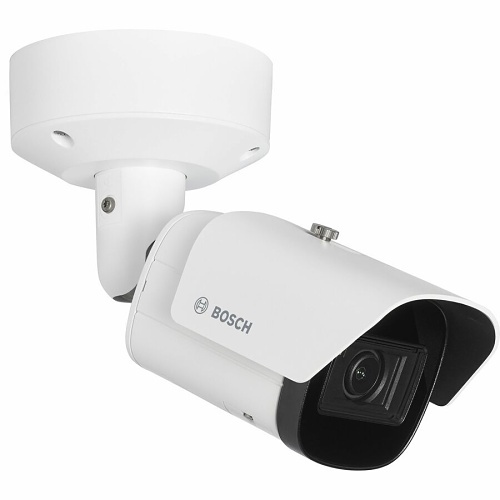

Bosch NBE-5704-AL Bullet IP Camera, 8MP, 3.2-10.5mm Lens, IP66/67 and IK10 Rated, High Dynamic Range

Name: Bosch NBE-5704-AL Bullet IP Camera, 8MP, 3.2-10.5mm Lens, IP66/67 and IK10 Rated, High Dynamic Range
Brand: Bosch
SKU: NBE-5704-AL
Availability: InStock

in stock

Special Order

$1,198.69

Ideal for remote surveillance applications, this network camera delivers excellent performance
Offers a resolution of up to 3840 x 2160 for real-time surveillance with unmatched clarity
The CMOS sensor provides an affordable alternative to CCD, using less power while delivering superior HD video quality
Features a maximum focal length of 10.50 mm, ensuring reliable identification over greater distances and enhanced coverage
Equipped with a maximum aperture of f/1.6, it delivers reliable, detailed, and sharp imagery with added dependability
Supports night vision up to a distance of 147.64 ft
4K recording format ensures exceptional video quality and maximum operational efficiency
Infrared night vision enhances surveillance capabilities, improving operational productivity
The P-iris camera provides reliable performance with enhanced quality for optimal productivity
Fixed lens design efficiently adjusts exposure or gain to compensate for varying lighting conditions

SKU: NBE-5704-AL Categories: Bullet Cameras, IP Cameras, Video Surveillance Brand: Bosch

Description

The surveillance camera is a versatile and professional tool for outdoor security monitoring. It features a 1/2.8” sensor and HDR technology delivering 4K ultra HD resolution. The integrated intelligent infrared illuminator ensures high performance in low-light conditions. Equipped with built-in Intelligent Video Analytics Pro (IVA Pro), it enhances comprehensive situational awareness and triggers relevant security alerts. Its durable construction and stable housing with a sunshield prevent overexposure during peak sunlight, ensuring optimal image stability.

Camera
Night Vision Distance	147.64 ft
Wide Dynamic Range	Yes

Certifications
Ingress Protection Rating	IP66, IP67

Display & Graphics
Color Supported	Color, Monochrome
Maximum Video Resolution	3840 x 2160

Environmental Conditions
Maximum Operating Temperature	131°F (55°C)
Minimum Operating Temperature	-40°F (-40°C)
Operating Humidity	93%

Exposure
Longest Shutter Speed	1/25 Second
Shortest Shutter Speed	1/15000 Second

General Information
Brand Name	Bosch
Manufacturer	The Bosch Group
Manufacturer Part Number	NBE5704AL
Product Line	Dinion
Product Model	NBE-5704-AL
Product Name	NBE-5704-AL Bullet 8MP HDR 3.2-10.5mm IP66/67 IK10
Product Series	5100i
Product Type	Network Camera

Interfaces/Ports
Network (RJ-45)	Yes

Lens
Focal Length	3.2-10.5 mm
Lens Included	Yes
Maximum Focal Length	10.50 mm

Miscellaneous
Environmental Certification	EU RoHS, WEEE
Environmentally Friendly	Yes
Features	Alarm Triggering, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Human Detection, Privacy Masking, Vehicle Detection, White Balance
Impact Protection Rating	IK10
Indoor/Outdoor	Outdoor

Network & Communication
Remote Management	Yes

Physical Characteristics
Color	White
Color Family	White
Durability	Dust Resistant, Impact Resistant, Rain Resistant, Waterproof
Form Factor	Bullet
Height	3.8"
Product Color	Signal White
Weight (Approximate)	5.51 lb

Power Description
Input Voltage	12V DC, 24V AC

Product Information
Diameter	5.8"
Mount Type	Ceiling Mount, Wall Mount

Storage
Recording Formats	4K
Storage Type	Memory Card

Technical Information
Connectivity Technology	Wired
Effective Camera Resolution	8MP
Field of View	Horizontal: 105° - 31°, Vertical: 57° - 18°
HD Recording	Yes
Lens Type	Fixed
Maximum Aperture	f/1.6
Maximum Frame Rate	30 fps
Minimum Focal Length	3.20 mm
Night Vision	Yes
Night Vision Type	Infrared
