Description

Leveraging advanced deep learning algorithms, Hikvision AcuSense technology enhances security systems by integrating human and vehicle target classification alarms into both front-end and back-end devices. This innovation significantly minimizes false alarms triggered by non-human or non-vehicle objects, thereby dramatically increasing alarm efficiency and effectiveness.

Camera
Night Vision Distance196.85 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberPCI-B15Z2S
Product LineAcuSense
Product ModelPCI-B15Z2S

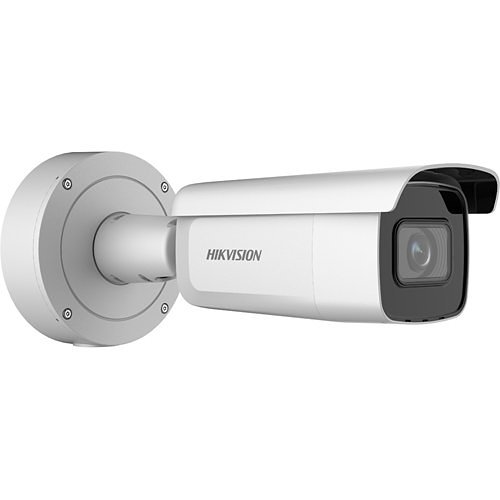

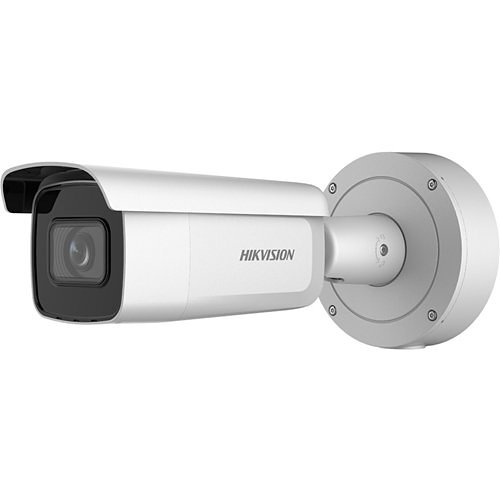

Product NameAcuSense 5 MP Varifocal Bullet Network Camera
Product SeriesAcuSense
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Environmental CertificationREACH, RoHS, WEEE
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Built-in HLC, Cross Line Detection, Day/Night, Defog, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Tampering Alarm
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesHX-BL2646VZ
Model Number ReplacesBL2646VZ

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorBullet
Height13.1"
Product ColorWhite
Weight (Approximate)3.13 lb
Width5.7"

Power Description
Input Voltage12V DC

Product Information
Diameter5.7"
Mount TypeCorner Mount, Pole Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View2.7 to 13.5 mm: horizontal FOV 101° to 31°, vertical FOV 72.2° to 23.4°, diagonal FOV 138.8° to 39.8°
HD RecordingYes
Lens Mount TypeF14
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom5x
