Description

Leveraging advanced deep learning algorithms, the AcuSense technology in Hikvision’s security solutions enables precise classification of human and vehicle targets for both front-end and back-end devices. This innovation significantly minimizes false alarms triggered by non-human or non-vehicle sources, markedly enhancing alarm accuracy and efficiency.

– Superior low-light capability with DarkFighter technology
– High-resolution imaging featuring 5 MP clarity
– Advanced H.265+ compression for efficient data storage
– Lens Specifications: 2.8 mm, horizontal FOV 97°, vertical FOV 71°, diagonal FOV 129°
– Reduction of false alarms through sophisticated human and vehicle target classification via deep learning
– Infrared range capabilities of up to 295 ft (90 m)
– Robust water and dust resistance with IP67 rating

Camera
Night Vision Distance196.85 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberPCI-LB15F2SL
Product LineAcuSense
Product ModelPCI-LB15F2SL

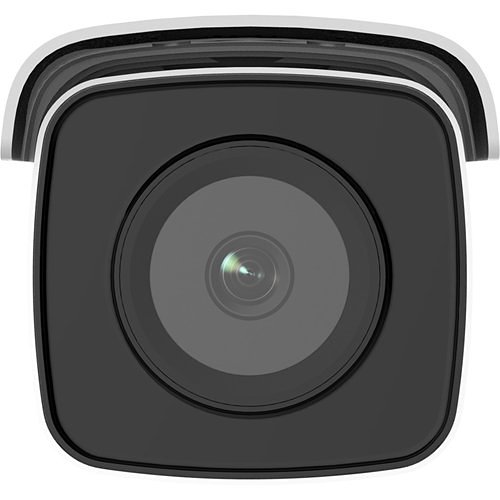

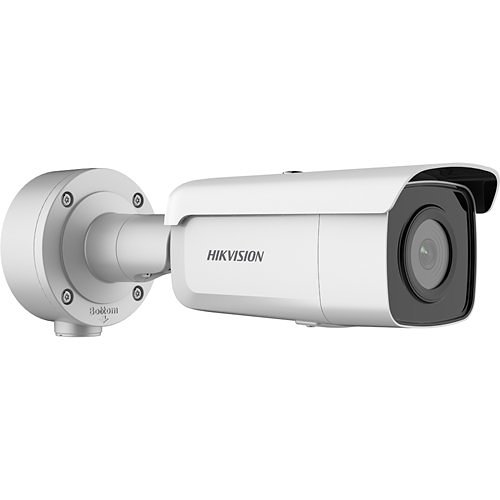

Product NameAcuSense 5 MP IR Fixed Bullet Network Camera
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationREACH, RoHS, WEEE
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Built-in HLC, Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Tampering Alarm
Indoor/OutdoorOutdoor
Package Contents AcuSense 5 MP IR Fixed Bullet Network Camera Junction Box

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesHX-BL2T4642S
Model Number ReplacesDS-2CD2T46G1-4I/SL 2.8MM

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Waterproof
Form FactorBullet
Product ColorWhite
Weight (Approximate)2.45 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCorner Mount, Junction Box Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of Viewhorizontal FOV 97°, vertical FOV 71°, diagonal FOV 129°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Year
