Description

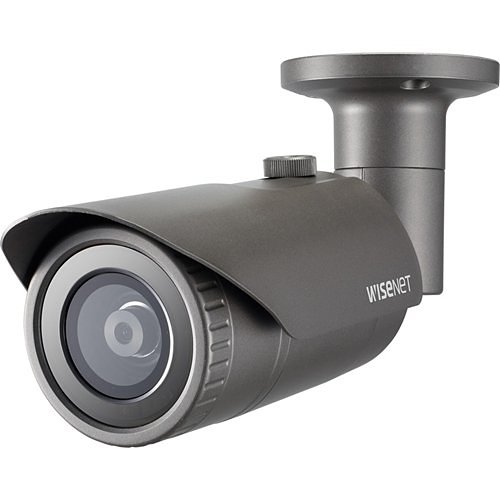

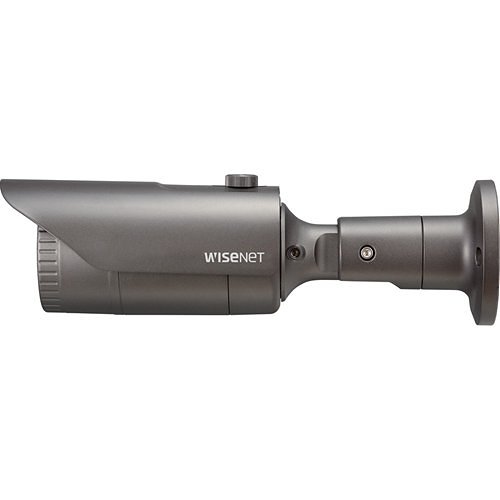

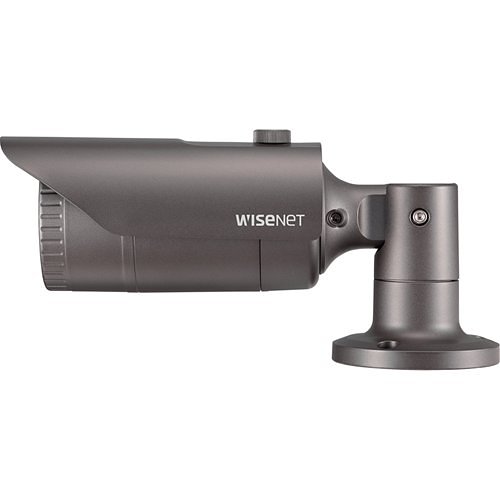

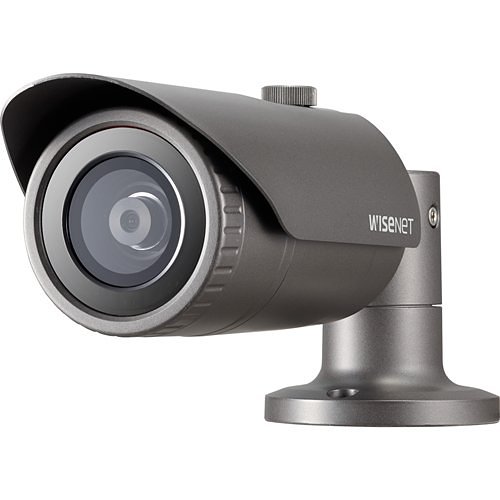

Explore the features of the QNO-8010R, part of Hanwha’s cost-effective Q Series network camera lineup. This 5 Megapixel bullet network camera incorporates advanced technologies such as WiseStream II compression, supporting triple codecs H.265/H.264/MJPEG for efficient data management. It is equipped with a 2.8mm lens and offers infrared capabilities for enhanced visibility, along with being certified to IP66 and IK10 standards for durable, weather-resistant performance. The camera supports Power over Ethernet (PoE) or 12VDC power options and boasts 120dB True Wide Dynamic Range for improved image clarity in challenging lighting conditions. Additional features include Intelligent Video Analytics, a Hallway View mode for optimized vertical monitoring, and an SD card slot accommodating SD/SDHC/SDXC cards up to 128GB for extended storage.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberQNO-8010R
Product ModelQNO-8010R
Product Name5 MP Network IR Bullet Camera with 2.8mm Lens
Product SeriesQ
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
FeaturesAlarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-QNO7010R
Model Number ReplacesQNO-7010R

Physical Characteristics
ColorGray
Color FamilyGray
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorBullet
Height9.7"
Product ColorDark Gray
Weight (Approximate)1.50 lb
Width2.8"

Power Description
Input Voltage12

Product Information
Diameter2.8"
Length9.7"
Mount TypeBox Mount, Pole Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH : 104.7°/ V : 76.5°/ D : 136.0°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.0
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Years
