Description

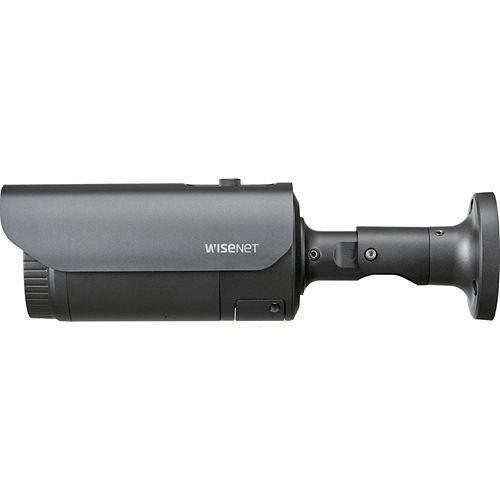

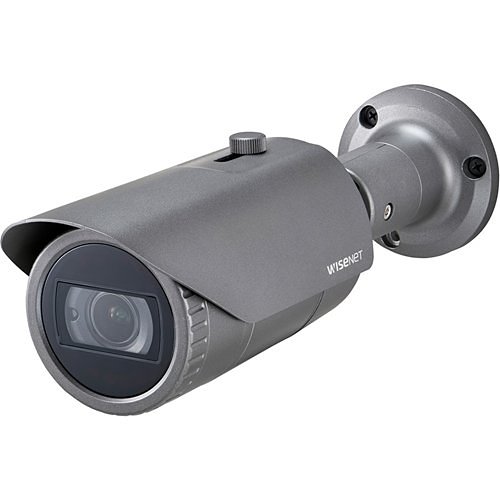

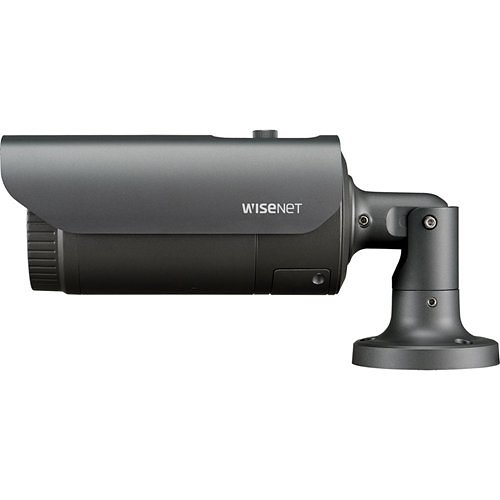

Hanwha’s QNO-8080R, part of the Q Series of affordable network cameras, is a 5 Megapixel bullet camera optimized for the security industry with features such as WiseStream II compression technology and support for triple codecs H.265/H.264/MJPEG. Designed with a 3.2~10mm motorized varifocal lens, this camera offers infrared support, weather-resistant IP66 and vandal-resistant IK10 ratings, Power over Ethernet (PoE) capability, 120dB True Wide Dynamic Range, Intelligent Video Analytics, and a Hallway View mode. It also includes an SD card slot accommodating SD, SDHC, or SDXC cards up to 128GB, ensuring extended video storage and easy focus adjustments with a simple press of a button.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberQNO-8080R
Product ModelQNO-8080R
Product Name5MP Network IR Bullet Camera
Product SeriesQ
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/2.9

Miscellaneous
FeaturesBack Light Compensation (BLC), Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-QNO7080R
Model Number ReplacesQNO-7080R

Physical Characteristics
ColorGray
Color FamilyGray
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorBullet
Height12.7"
Product ColorDark Gray
Weight (Approximate)2.62 lb
Width3.6"

Product Information
Diameter3.6"
Length12.7"
Mount TypeBox Mount, Pole Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.2 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3.1x

Warranty
Limited Warranty3 Years
