| Certifications | |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 320 x 240 |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -40°F |
| General Information | |
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNO-3020T |
| Product Model | TNO-3020T |
| Product Name | QVGA NW Thermal Camera |
| Product Series | T |
| Product Type | Network Camera |
| Lens | |
| Focal Length | 4.7 mm |
| Lens Included | Yes |
| Maximum Focal Length | 4.7 mm |
| Maximum Thermal Focal Length | 4.7 mm |
| Miscellaneous | |
| Features | Alarm Triggering, Audio Compression, Audio Detection, Digital Image Stabilization, HTTPS Encryption, Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection |
| Impact Protection Rating | IK10 |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Weight (Approximate) | 5.54 lb |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Storage | |
| Recording Formats | HD |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Field of View | H: 50,0?, V: 36,4?, D: 65,3? |
| HD Recording | Yes |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30 fps |
| Video | |
| Analog Video Signal Format | CVBS |
| Thermal Video Resolution | 320 x 240 |

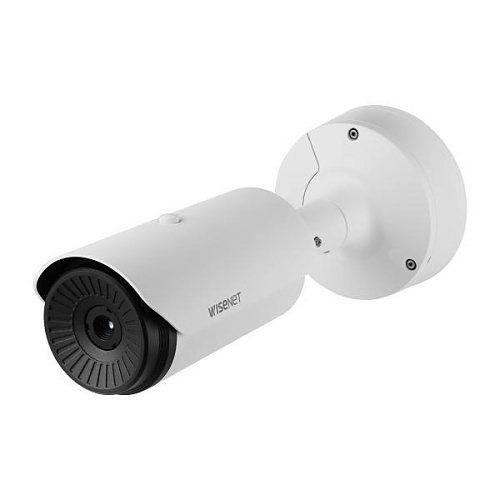

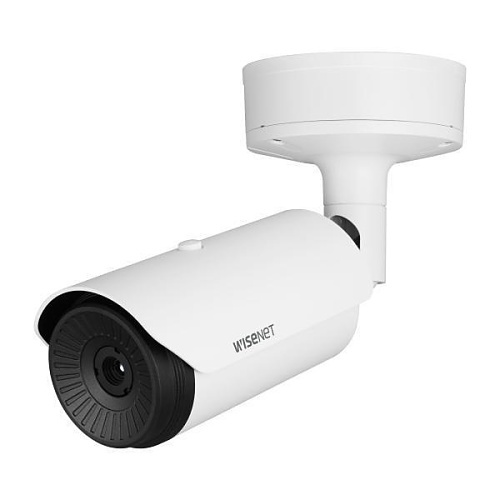

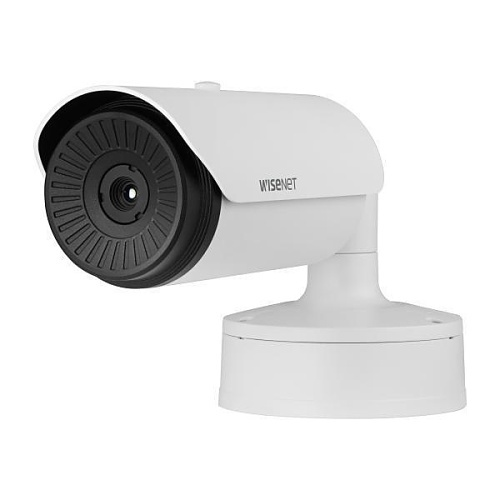

Hanwha TNO-3020T QVGA Thermal Bullet Camera, 4.7mm Fixed Lens, White
in stock
Special Order
$2,312.54
- Thermal imaging with QVGA (320 x 240) resolution
- Integrated 4.7mm fixed lens
- Delivers 30fps across all resolutions (H.265, H.264, MJPEG)
- Supports H.265, H.264, MJPEG triple codec
- Features WiseStream II compression technology
- Includes 7 customizable color palettes
- Equipped with 2-way bi-directional audio and alarm I/O functionality
- SD / SDHC / SDXC memory slot supporting up to 256GB storage
- Functions in temperatures ranging from -40°F to +140°F
- Compatible with PoE, 24V AC, and 12V DC; Compliant with IP66, NEMA4X, IK10 standards
