Description

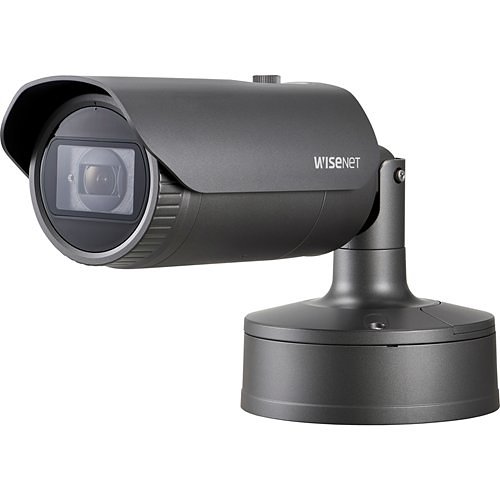

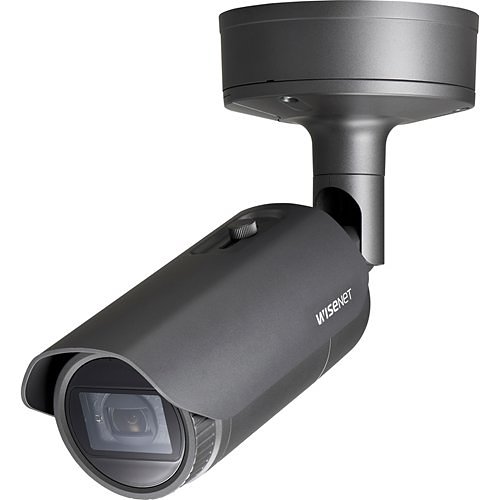

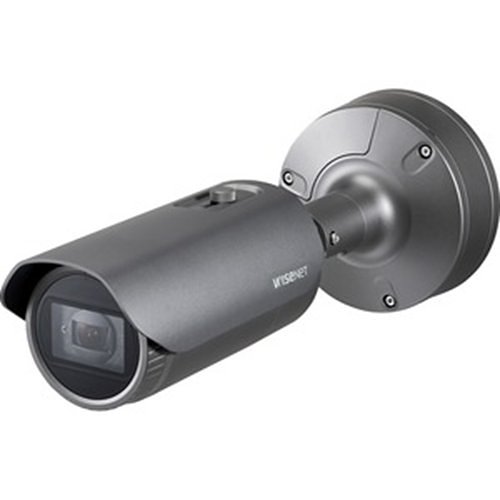

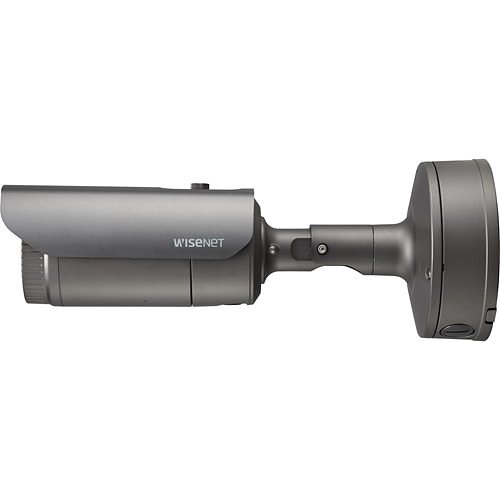

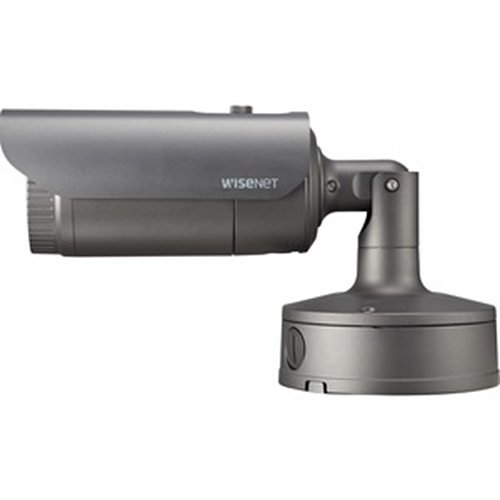

The Wisenet X series camera, featuring the Wisenet 5 chipset, offers a robust network IR outdoor vandal dome solution with a 2MP Full HD (1080p) resolution. It supports up to 60fps with WDR off or 30fps with WDR on. The camera incorporates a motorized vari-focal lens with a 4.3x zoom range (2.8~12mm) and a wide field of view (119.5°~27.9°). Compression options include H.265, H.264, and MJPEG, with WiseStream II technology enhancing efficiency. This camera boasts a 150dB WDR, a USB port for seamless installation, and advanced video analytics alongside sound classification features. It is equipped with high-powered IR LEDs, providing illumination up to 164 feet. With True Day/Night functionality, dual SD card slots, and versatile features such as Hallway View, HLC, and Defog detection with simple focus, it offers reliable performance. The camera supports DIS and can be powered via 12VDC, 24VAC, or PoE. Built to withstand harsh conditions, it meets IP67, IK10, and NEMA 4X standards, and includes a built-in heater operational down to -40°F.

Camera
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-40°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.015 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXNO-6080R
Product ModelXNO-6080R
Product Name2MP Network IR Bullet Camera
Product SeriesX
Product TypeBullet Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
FeaturesBack Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorGray
Color FamilyGray
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorBullet
Height14.5"
Product ColorDark Gray
Weight (Approximate)4.8 lb
Width3.6"

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter3.6"
Mount TypePole Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 119.5°-27.9°, V: 62.8°-15.7°, D: 142.1°-32.0°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeDC Auto Iris, P-iris
Maximum ApertureF1.4
Maximum Frame Rate60 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom4.3x

Warranty
Limited Warranty3 Year
