Description

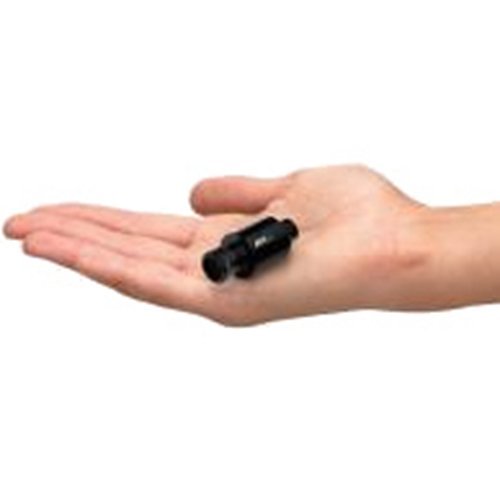

The AXIS F1015 Sensor Unit, when integrated with an AXIS F Main Unit, is optimal for discreet indoor surveillance applications. This sensor unit is designed for installation in tight spaces and can be flush-mounted on walls or ceilings, with the main unit positioned remotely where there’s more space available.

**Discreet Monitoring Solutions**

The AXIS F1015 features a 1080p image sensor delivering 1920 x 1080 resolution and is equipped with a varifocal lens that offers a horizontal field of view ranging from 52° to 97°. The varifocal lens allows the field of view to be adjusted according to specific surveillance needs. In tele mode, it captures finer details within a narrower field, whereas in wide mode, it covers a broader scene.

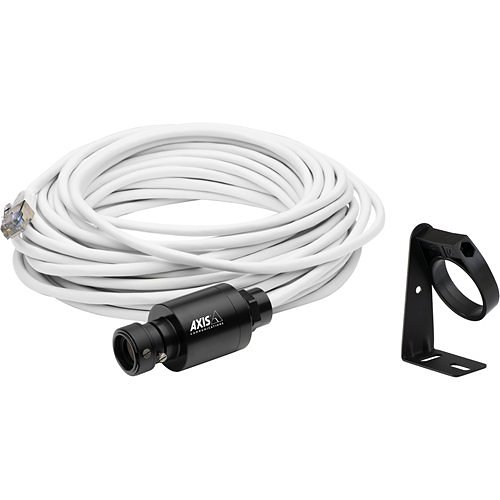

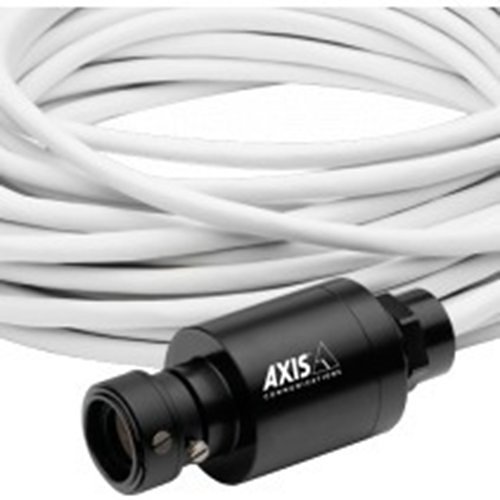

The AXIS F1015 includes a 3-meter or 12-meter (10 ft. or 39 ft.) pre-mounted cable that connects to an AXIS F Main Unit. The package also includes an AXIS F8201 Vari-angle Mounting Bracket, facilitating flexible mounting and tilting of the sensor unit in the desired position.

**Advanced Imaging with WDR – Forensic Capture**

The AXIS F1015 supports Wide Dynamic Range (WDR) – Forensic Capture when paired with a compatible main unit. This advanced feature ensures that a high level of detail is visible in both the brightest and darkest areas of the surveillance scene.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity85%

Exposure
Longest Shutter Speed2 Second
Minimum Illumination0.3 lux

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number0677-001
Product LineF
Product ModelF1015
Product NameF1015 Sensor Unit
Product SeriesF10
Product TypeNetwork Camera

Lens
Focal Length2.8-6 mm
Lens IncludedYes
Maximum Focal Length6 mm

Miscellaneous
CompatibilityAXIS F Main Units: F34 Main Unit F41 Main Unit F44 Dual Audio Input
FeaturesWide Dynamic Range
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorBlack
Color FamilyBlack
Height2.7"
Product ColorBlack
Weight (Approximate)4.23 oz
Width1.2"

Product Information
Diameter1.2"
Mount TypeCeiling Mount, Flush Mount, Wall Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view : 97° - 52° ; Vertical field of view : 53° - 30°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeVarifocal
Maximum Aperturef/2
Maximum Frame Rate60 fps
Minimum Focal Length3 mm
Optical Zoom2x
