Description

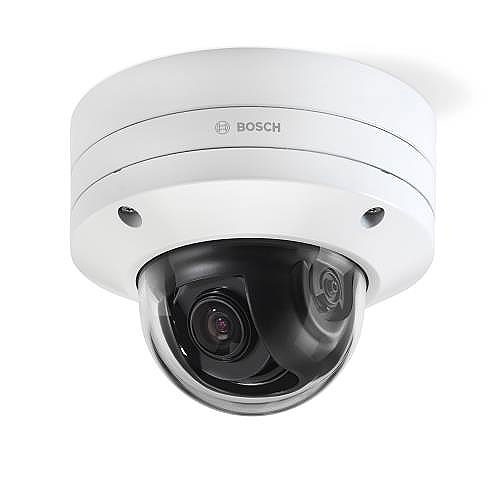

The FLEXIDOME IP starlight 8000i – 2MP performance line camera delivers exceptional starlight technology and High Dynamic Range capabilities in 1080p resolution, ensuring sharp and highly detailed images in extreme low-light conditions. The camera’s remote commissioning feature streamlines the installation and setup processes, drastically reducing the time required. By utilizing a PC or mobile device with the Bosch Project Assistant app, users can pan, tilt, roll, and zoom (PTRZ) to adjust the camera’s field of view with a single click—entirely hands-free.

**Core Features**

**Comprehensive Remote Commissioning**
The installation process for professional IP video surveillance cameras is now more efficient than ever. Traditional methods will become a thing of the past with the simplified installation and commissioning stages offered by the FLEXIDOME IP starlight 8000i. Installers can complete setup swiftly, without climbing ladders. Through the Bosch Project Assistant app, you can adjust the camera’s positioning (PTRZ) without physically handling the device. Subsequent remote configuration and commissioning are possible via network connection, using the Bosch Project Assistant app, the camera’s web interface, or the Bosch Configuration Manager.

**High-speed Performance**
The 60 frames per second capability ensures optimal video surveillance performance, capturing fast-paced scenes with precision and retaining critical data without loss, delivering video with remarkable detail.

**Starlight Technology**
Advanced sensor technology, combined with sophisticated image processing and noise reduction, results in outstanding sensitivity in capturing color images. The camera excels in low-light environments, maintaining excellent color clarity with minimal ambient light.

**High Dynamic Range (HDR)**
Employing a multiple-exposure technique, the high dynamic range mode enhances detail visibility in areas with both bright and shadowed lighting within the same scene. This enables clear distinction of objects and features, such as faces with strong backlighting. The camera’s dynamic range is verified using Opto-Electronic Conversion Function (OECF) analysis following IEC 62676 Part 5 standards.

**Scene Modes**
The camera comes with nine configurable scene modes, each optimized for various applications. With one click, users can select the best image settings suited to specific environmental conditions. Different modes are available to cater to distinct scenarios, such as traffic monitoring or retail settings.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP6K9K
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-58°F (-50°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/15000 Second

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberNDE-8512-R
Packaged Quantity1
Product LineFLEXIDOME IP Starlight
Product ModelNDE-8512-R
Product NameFixed Dome 2MP HDR 3-9mm PTRZ IP66
Product Series8000i
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3-9 mm
Lens IncludedYes
Maximum Focal Length9 mm
Minimum Aperturef/2.3

Miscellaneous
Environmental CertificationEU RoHS, EU WEEE, REACH
Environmentally FriendlyYes
FeaturesAuto Tracking, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection RatingIK10
Package Contents1 x Fixed Dome 2MP HDR 3-9mm PTRZ IP661 x T-20 Security Torx Bit1 x Quick Installation Guide1 x Safety Information2 x Rubber Grommet for the Ethernet Cableand more below, 1 x 10-pin I/O Connector, 1 x 2-pin Power Connector, 1 x Adapter Plate for Cable Conduit (Ø 1/2" / M20), 1 x Adapter Plate for Cable Conduit (Ø 3/4" / M25), 1 x Cable Conduit for Side Entry, 1 x Network Patch Cable 50 cm, 1 x Washer for Cable Conduit, 3 x Identification Label

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesPB-NDE8502R
Model Number ReplacesNDE-8502-R

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth6.9"
DurabilityDust Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Waterproof, Wind Resistant
Form FactorDome
Height5.8"
Product ColorWhite
Weight (Approximate)4.85 lb

Power Description
Input Voltage12V DC, 24V AC, 26V DC

Product Information
Mount TypeBox Mount, Ceiling Mount, Pendant Mount, Pole Mount, Surface Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewWide: 117º x 59º (H x V); Tele: 37º x 21º (H x V)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.2
Maximum Frame Rate60 fps
Minimum Focal Length3 mm
Optical Zoom3x
