Description

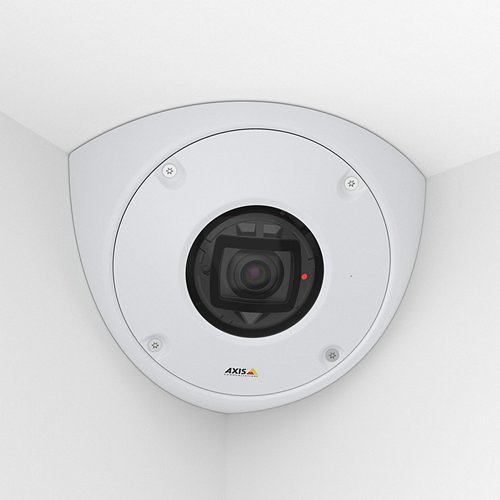

The AXIS Q9216-SLV is a compact, durable, ligature-resistant corner-mount camera that provides high-quality 4 MP video surveillance. Designed for comprehensive coverage, it offers a horizontal view of 125 degrees and a vertical view of 95 degrees, eliminating blind spots. Its invisible IR illumination makes it perfect for discreet video monitoring in complete darkness. The camera features an IK10+/IP66-rated enclosure, a removable built-in microphone, and an indication LED. Advanced functionality includes polygonal privacy masking to ensure flexible surveillance while maintaining privacy. Security is enhanced with signed firmware and a Trusted Platform Module (TPM) certified to FIPS 140-2 level 2 standards to prevent unauthorized access.

– Ligature-resistant and robust (IK10+)
– Corner-mounted for full visibility
– Wide Dynamic Range (WDR) and invisible IR (940 nm)
– Compact and easy installation
– Supports Zipstream with H.264 and H.265 compression

Camera
Night Vision Distance49.21 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP69, IP6K9K
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2304 x 1728

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity85%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/32500 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number01767-001
Product LineQ
Product ModelQ9216-SLV
Product NameQ9216-SLV Network Camera
Product SeriesQ92
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.4 mm
Lens IncludedYes
Maximum Focal Length2.40 mm

Miscellaneous
FeaturesBuilt-in Microphone, Day/Night, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Shock Detection, Tampering Alarm
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor
Package ContentsQ9216-SLV Network CameraInstallation GuideWindows Decoder 1-User LicenseAVHS Authentication KeyAXIS Device Microphone AAXIS Connector A 4-Pin 2.5 Straightand more below, Cable Gaskets, RESISTORX 20 bit

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-0710001
Model Number Replaces0710-001

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth6.9"
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height5.2"
Product ColorWhite
Weight (Approximate)3.53 lb
Width8.2"

Power Description
Input Voltage12V DC

Product Information
Mount TypeConduit Mount, Corner Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewHorizontal field of view: 125° Vertical field of view: 95°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate60 fps
Minimum Focal Length2.4 mm
Night VisionYes

Warranty
Limited Warranty5 Year
