Description

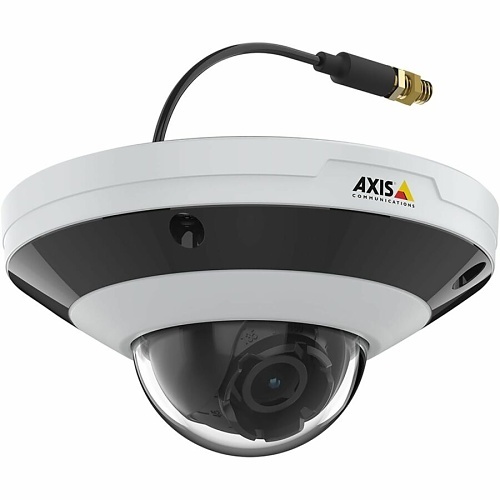

This ruggedized mini-dome surveillance sensor is the perfect choice for retail environments and office settings, offering durability and discreet monitoring. Engineered to withstand shock and vibrations, it is also an excellent solution for transit surveillance on buses. It is compatible exclusively with 2nd generation main units and cables.

**Discreet and Budget-Friendly**

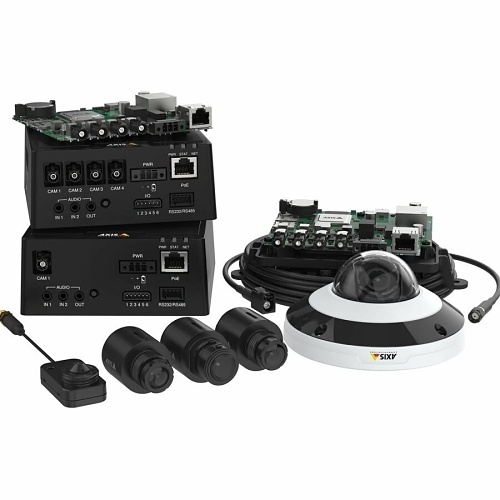

The AXIS F4105-LRE provides exceptional discreet surveillance capabilities. Utilizing a split network camera design, it pairs with AXIS F91 main units for enhanced flexibility at reduced installation and configuration costs compared to traditional dome cameras. The sensor can connect to the main unit via cables up to 30 meters (98 feet) long. You can attach up to four sensors to a single main unit, allowing coverage of expansive areas with the extended cable reach. Compatible with any AXIS F91 main unit, whether single or 4-channel, this cost-effective solution requires just one VMS license and a single switch port.

**Versatile Applications**

Suitable for both indoor and outdoor environments, the AXIS F4105-LRE operates efficiently within a temperature range of -30 to 55 °C (-30 to 131 °F). It supports an array of interchangeable M12 lenses to customize the field of view based on the scene and objects of interest. This robust camera is designed to endure shock and vibrations, making it ideal for high-vibration settings. It features SMA connectors for secure, ruggedized installations. Additionally, rated IP6K9K, this camera is impervious to hot pressure water, enabling its use in clean environments such as food processing facilities and hospitals.

**Exceptional Video Quality**

The AXIS F4105-LRE ensures high image usability in various lighting conditions. It supports four HDTV 1080p video streams at 30 fps or 720p streams at 60 fps. When integrated with the AXIS F9111, it delivers HDTV 1080p streams at 60 fps or 720p streams at up to 180 fps. Coupled with an AXIS F91 main unit, it offers Forensic WDR for clear visualization in scenes with both dark and bright areas. It provides an impressive 111º field of view for extensive area coverage, and its IR illumination enables surveillance in complete darkness without additional lighting.

Camera
Night Vision Distance32.81 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP6K9K

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity100%

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number02364021
Packaged Quantity8
Product LineF
Product ModelF4105-LRE
Product NameF4105-LRE Dome Sensor
Product SeriesF41
Product TypeSurveillance Camera

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.80 mm

Miscellaneous
FeaturesDay/Night, Motion Detection, Region of Interest, Removable IR Cut-off Filter, Rugged Design, Video Management System, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor
Package Contents F4105-LRE Dome Sensor Installation Guide Lens tool

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth3.3"
DurabilityDustproof, Impact Resistant, Shock Resistant, Vandal Resistant, Vibration Resistant, Waterproof
Form FactorDome
Package TypeBulk
Product ColorWhite
Weight (Approximate)1.30 lb

Product Information
Diameter4.4"
Mount TypeBracket Mount, Junction Box Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view: 110° Vertical field of view: 60°
HD RecordingYes
Lens Mount TypeM12-mount
Lens TypeFixed
Maximum Aperturef/2.0
Maximum Frame Rate180 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs2

Warranty
Limited Warranty5 Year
