Description

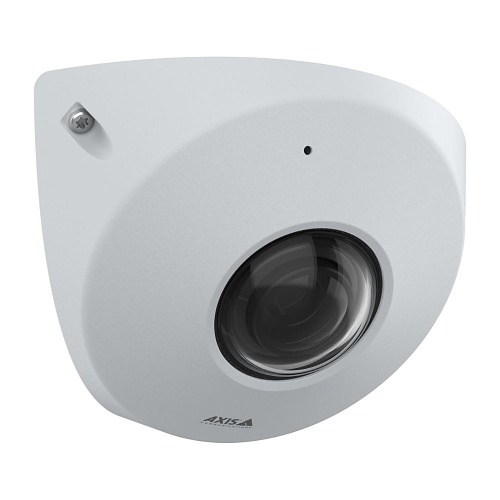

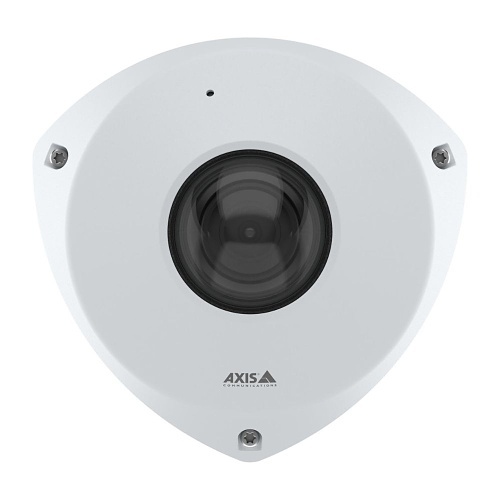

The AXIS P9117-PV is a state-of-the-art 360° panoramic surveillance camera, designed to eliminate blind spots using industry-leading features. This 6MP corner-mounted camera incorporates advanced technologies like Lightfinder and Forensic WDR to capture true-to-life colors and exceptional detail, even in low-light or near-dark conditions. The TP9801 Cover Steel is available as an accessory, enhancing durability. With an integrated deep learning processing unit, this camera supports robust edge analytics, such as Object Analytics, which can detect and classify various objects of interest. Equipped with a built-in microphone, it’s ready for Audio Analytics right out of the box. Additionally, its hardware-based cybersecurity platform, Edge Vault, ensures device protection against security threats.

Certifications
Ingress Protection RatingIP66
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2160 x 2160

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature5°F (-15°C)
Operating Humidity85%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/33500 Second

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number02864-001
Product LineP
Product ModelP9117-PV
Product NameP91 9117-PV Network Camera
Product SeriesP91
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Lens IncludedYes
Maximum Focal Length1.10 mm

Miscellaneous
Features3D Noise Reduction, Day/Night, HTTPS Encryption, Noise Reduction, Password Protection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-01553001, Z4-01620001
Model Number Replaces01553-001, 01620-001

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth4.8"
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height3.6"
Product ColorWhite
Weight (Approximate)1.68 lb
Width5.7"

Product Information
Mount TypeCeiling Mount, Corner Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution6MP
Field of ViewOverview (1:1) :Horizontal field of view: 176° Vertical field of view: 176° Corner View (4:3) :Horizontal field of view: 115° Vertical field of view: 100°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.2
Maximum Frame Rate60 fps
Minimum Focal Length1.1 mm
