Description

**Overview**

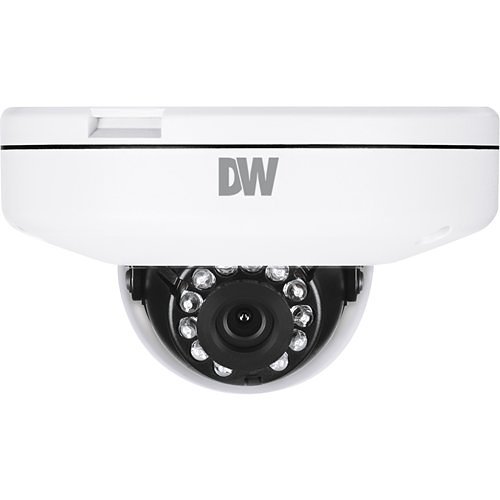

This advanced IP camera offers a comprehensive range of video analytics capabilities, serving as an entry point to cutting-edge surveillance technologies. Compliant with NDAA/TAA regulations, it delivers crisp 2.1MP/1080p resolution at 30 fps. Equipped with a robust analytics engine, it can detect and classify people, vehicles, and objects in real-time, with support for logical rules. Available with 2.8mm and 4.0mm fixed lens options, it supports H.265/H.264/MJPEG codecs for simultaneous streaming. The camera uses Star-Light Plus™ technology to capture high-quality color video in near-total darkness and is housed in an IP66-rated, IK-10 impact-resistant ultra low-profile vandal dome, ensuring durability and reliability. Being ONVIF conformant, it integrates seamlessly with any open platform solution in the market.

**Features**

– 2.1MP/1080p 1/2.8″ image sensor operating at 30fps
– Star-Light Plus™ technology enables color capture in nearly dark conditions
– Advanced Intelligent Video Analytics (IVA) with enhanced features
– Seamless IVA rules integration with DW Spectrum® IPVMS
– Minimize false alarms
– Improve recording storage efficiency through logic rules and smart recording
– Lens options: 2.8mm fixed (DWC-MPF2Wi28TW) and 4.0mm fixed (DWC-MPF2Wi4TW)
– True Wide Dynamic Range (WDR) for balanced visibility
– Supports H.265, H.264, MJPEG codecs with simultaneous streaming
– 50′ Smart IR™ for effective night vision with camera sync
– Ultra low-profile robust vandal dome
– Smart DNR™ 3D digital noise reduction for enhanced clarity
– True day/night operation with mechanical IR cut filter
– Programmable privacy zones to protect sensitive areas
– Features auto gain control (AGC) and auto white balance (AWB) for optimal image quality
– Includes motion detection technology
– Supports two-way audio communication
– Comes with a micro SD/SDHC/SDXC class 10 card slot (card not included)
– Power options include PoE class 2 and DC12V
– UL listed for safety compliance
– NDAA/TAA compliant
– Dust-tight and water-resistant with IP66 rating
– IK 10-rated for impact resistance
– Covered by a 5-year warranty

Camera
Night Vision Distance50 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1945 x 1109

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MPF2WI28TW
Product LineMEGApix
Product ModelDWC-MPF2WI28TW
Product NameMEGApix IVA+ DWC-MPF2WI28TW Network Camera
Product SeriesMF2
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Automatic White Balance, Cross Line Detection, Day/Night, HTTPS Encryption, Motion Detection, Privacy Masking, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandalproof, Waterproof
Form FactorDome
Weight (Approximate)14.82 oz

Power Description
Input Voltage12V DC

Product Information
Mount TypeBracket Mount, Ceiling Mount, Junction Box Mount, Vehicle Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View115° / 65°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty5 Year
