Description

**Summary**

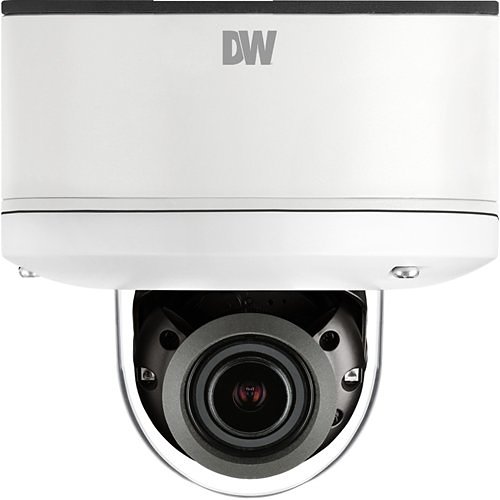

This advanced MEGApix® IVA+™ IP camera serves as a powerful tool for leveraging video analytics capabilities within the security industry. Engineered to be NDAA/TAA compliant, it delivers 5MP resolution at a smooth 30fps, making it ideal for high-quality surveillance needs. The MEGApix IVA+ cameras are equipped with an advanced engine adept at real-time detection and classification of people, vehicles, and objects, with support for logical rules that enhance security measures. A 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus enhances precision in coverage, while simultaneous support for H.265/H.264/MJPEG codecs ensures flexibility in video compression. The innovative Star-Light Plus™ technology ensures vibrant color in low-light conditions, while the Cold Start feature operates efficiently at extreme temperatures as low as -40° F/-40° C. Installation is simplified with the Snapit™ housing, which features an IP68 rating for durability and CleanView™ dome treatment for clarity. As all MEGApix® cameras are ONVIF conformant, they promise seamless integration with any open platform in today’s diverse technology landscape.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP68
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Minimum Illumination0.08 lux
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MPV45WIATW
Product LineMEGApix
Product ModelDWC-MPV45WIATW
Product Name5MP Color in Near-Total Darkness Snapit Vandal Dome IP Camera with IVA+
Product SeriesV4
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.5 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Auto Gain Control, Automatic White Balance, Cross Line Detection, Day/Night, Digital Noise Reduction, Enter/Exit Detector, Human Detection, Motion Detection, Privacy Protection, Removable IR Cut-off Filter, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Weight (Approximate)2.76 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View96° ~ 31° / 70° ~ 24°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.7 mm
Optical Zoom5x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty5 Year
