Description

**Overview**

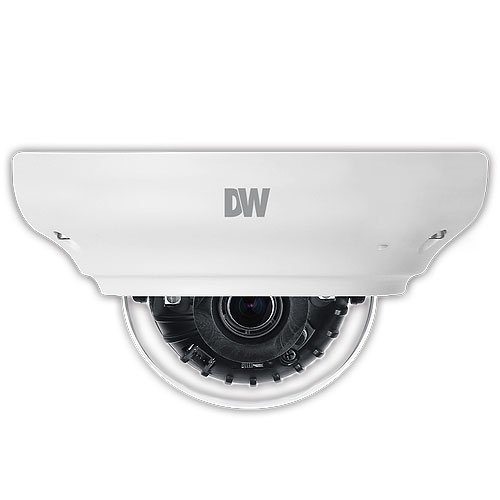

Experience the next level of surveillance with our advanced IP camera, equipped with cutting-edge video analytics capabilities. Compliant with NDAA/TAA regulations, this robust camera delivers a 5MP resolution at 30 frames per second. The sophisticated video analytics engine can detect and classify people, vehicles, and objects in real-time, utilizing intelligent logical rules. Choose from fixed lens options of 4.0mm, 6.0mm, and 8.0mm, and enjoy the benefit of simultaneous H.265/H.264/MJPEG codec support. Star-Light Plus technology ensures superior image quality even in near-total darkness, and its IP66-rated, IK-10 impact-resistant low-profile vandal dome housing ensures durability. ONVIF conformant, this camera integrates seamlessly with any open platform solution.

**Product Features**

– Captures clear images with a 5MP 1/2.8″ image sensor at real-time 30fps
– Utilizes Star-Light Plus technology for color images in low-light conditions
– Advanced Intelligent Video Analytics (IVA) with enhanced IVA+ features
– Effortlessly manage IVA rules integration with DW Spectrum® IPVMS
– Available with 4.0mm, 6.0mm, and 8.0mm fixed lens options
– True Wide Dynamic Range (WDR) for balanced lighting in harsh conditions
– Triple codec support (H.265, H.264, MJPEG) allows simultaneous streaming
– Equipped with Smart IR technology offering up to 50′ range
– Ultra low-profile vandal-resistant dome design for discreet security
– Smart DNR 3D technology minimizes digital noise
– True day/night mechanical IR cut filter for nighttime clarity
– Define and control programmable privacy zones
– Features auto gain control (AGC) and auto white balance (AWB)
– Detects motion effectively
– Supports two-way audio for communication
– Includes Micro SD/SDHC/SDXC class 10 card slot (card not included)
– Built-in web server for easy access and management
– Supports both PoE class 2 and DC12V power options
– Certified UL listed and NDAA/TAA compliant
– Withstands harsh environments with IP66 dust-tight and water-resistant rating
– Impact-resistant with IK 10 rating
– Protected by a 5-year warranty

Camera
Night Vision Distance80 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Illumination0.1 lux
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MPV72WI4ATW
Product LineMEGApix
Product ModelDWC-MPV72WI4ATW
Product NameMEGApix IVA+ DWC-MPV72WI4ATW Network Camera
Product SeriesMV72
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4 mm
Lens IncludedYes
Maximum Focal Length4 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Built-in Microphone, Cross Line Detection, Day/Night, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Weight (Approximate)12.70 oz

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View86° / 46°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.6
Maximum Frame Rate30 fps
Minimum Focal Length4 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty5 Year
