Description

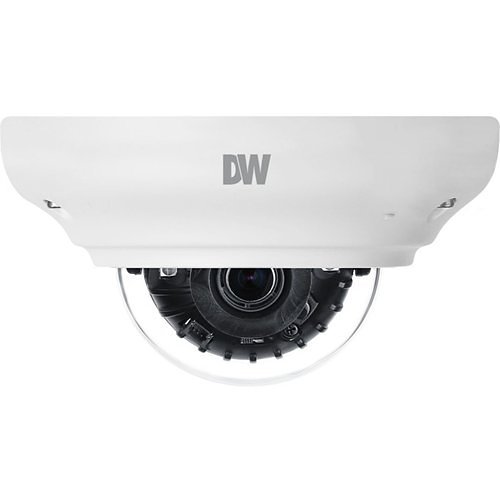

This advanced MEGApix® IP surveillance camera delivers high-definition video with a 2.1MP/1080p resolution at a real-time frame rate of 30fps, and features the added advantage of audio capture via an integrated microphone. It offers flexible imaging options with 2.8mm and 4.0mm fixed lenses, supports simultaneous H.265/H.264/MJPEG compression formats, and utilizes Star-Light Plus™ technology to ensure superior color video capture even in exceptionally low-light environments. Engineered for durability, this camera boasts an IP67-rated, IK-10 impact-resistant, ultra low-profile vandal dome design. Compliant with ONVIF standards, MEGApix® cameras ensure seamless integration with any open-platform security system.

Camera
Night Vision Distance80 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MV72WI28ATW
Product LineMEGApix
Product ModelDWC-MV72WI28ATW
Product NameMEGApix DWC-MV72WI28ATW Network Camera
Product SeriesMV72
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.80 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Automatic White Balance, Day/Night, Dual Stream, Gain Control, Motion Detection, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number Replaces6K-MV72W28TW
Model Number ReplacesDWC-MV72WI28TW

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Weight (Approximate)12.64 oz

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of View111° / 62°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty5 Year
