Description

**Overview**

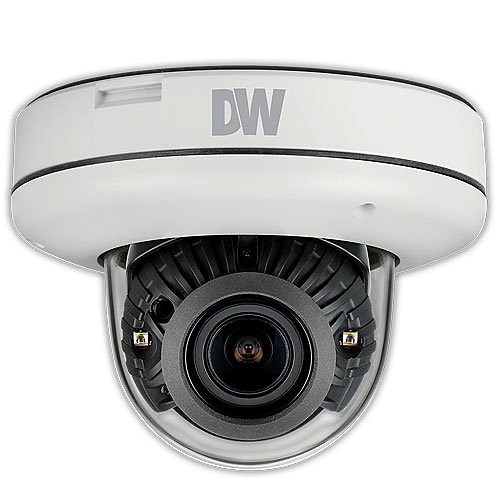

This advanced MEGApix® IVA™ IP surveillance camera offers a robust suite of video analytics features, ensuring optimal security performance. It is compliant with NDAA/TAA standards and delivers high-definition 2.1MP/1080p resolution at a smooth 30fps. The MEGApix IVA cameras are equipped with a sophisticated analytics engine capable of real-time detection and classification of individuals and vehicles. For enhanced Video Content Analysis, an IVA+ license upgrade is available, providing superior detection capabilities. This camera is equipped with a 2.8~12mm vari-focal auto-focus lens featuring motorized zoom, supports simultaneous streaming with H.265/H.264/MJPEG codecs, and utilizes Star-Light Plus™ technology for vibrant color imaging even in near-total darkness. Its IP66-rated, IK-10 impact-resistant housing is fortified with CleanView™ self-cleaning dome technology. All MEGApix® cameras are designed in accordance with ONVIF standards, ensuring seamless integration with any open-platform security system.

**Key Features**

– High-resolution 2.1MP/1080p 1/2.8″ image sensor providing real-time 30fps
– Star-Light Plus™ technology for capturing color images in near-total darkness
– Cutting-edge Intelligent Video Analytics (IVA)
– Advanced IVA+ features available with license upgrade
– 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
– True Wide Dynamic Range (WDR) capability
– Triple codec support (H.265, H.264, MJPEG) for concurrent streaming
– 100′ Smart IR™ with synchronized camera analytics
– CleanView™ hydrophobic dome coating to resist water, dust, and grease
– Smart DNR™ 3D digital noise reduction
– True day/night functionality with mechanical IR cut filter
– Configurable privacy zones
– Auto gain control (AGC) and auto white balance (AWB)
– Motion detection and two-way audio features
– Micro SD/SDHC/SDXC class 10 card slot (card not included)
– Alarm sensor input and relay output functionality
– Integrated web server
– Powered by PoE class 3 and DC12V
– NDAA/TAA compliant for use in government-related projects
– IP66 environmental rating for dust-tight and water-resistant protection
– IK 10-rated for impact resistance
– Backed by a 5-year warranty

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MV82WIATW
Product LineMEGApix
Product ModelDWC-MV82WIATW
Product NameMEGApix IVA DWC-MV82WIATW Network Camera
Product SeriesMV82
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Day/Night, Motion Detection, Privacy Masking, SD Card Local Storage
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number Replaces6K-MV421D, 6K-MV82WIAT
Model Number ReplacesDWC-MV421D, DWC-MV82WIAT

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Weight (Approximate)1.87 lb

Product Information
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Optical Zoom4.2x

Warranty
Limited Warranty5 Year
