Description

Megapixel Resolution

Advanced imaging technology ensures ultra-clear visuals across various resolutions. Higher resolutions enable detailed forensic analysis by allowing enhanced zoom capabilities within the camera’s field of view.

True Wide Dynamic Range (WDR)

Cameras featuring True Wide Dynamic Range (WDR) utilize cutting-edge sensors to manage a broad spectrum of lighting conditions, effectively balancing extreme contrasts of light and shadow in a single frame.

Smart IR Technology

This intelligent infrared (IR) technology dynamically adjusts illumination levels to avoid overexposure of foreground objects, delivering crisp black-and-white images without compromising on detail.

H.265 Codec Support

The High-Efficiency Video Coding (HEVC) standard provides 25% to 50% superior data compression, ensuring optimal video quality with reduced bandwidth usage and storage requirements.

Camera
Night Vision Distance164'
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature60°F (15.6°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MV95WIATW
Product LineMEGApix
Product ModelDWC-MV95WIATW

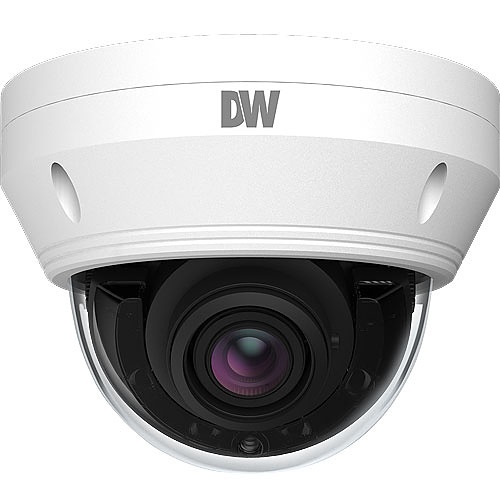

Product Name5MP Vandal Dome IP Camera
Product SeriesMV95
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Cross Line Detection, Day/Night, Motion Detection, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number Replaces6K-MV94WIAT
Model Number ReplacesDWC-MV94WIAT

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Impact Resistant, Waterproof, Weather Resistant
Form FactorVandal Dome
Height5.4"
Product ColorWhite
Weight (Approximate)1.98 lb
Width3.9"

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View95.1° ~ 30°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate60 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom4.3x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty5 Years
