Description

Line Crossing Detection

When a defined boundary is crossed from any direction, an event alert is triggered.

Perimeter Intrusion Detection

Upon setting a specific zone, any breach of the boundary, whether entering, exiting, or both, will activate an alert.

Video Tampering Detection – Color Anomaly

Changes in the camera’s color accuracy result in an alert being triggered.

Video Tampering Detection – Field of View Alteration

If the camera shifts and alters the Field of View (FoV), an alert is activated.

Video Tampering Detection – Image Blur

Detection of sudden blurriness or visibility loss initiates an alert notification.

Smart Infrared (IR) Technology

Smart IR technology automatically adjusts IR cameras to prevent overexposure of foreground objects, ensuring the clarity of black and white images without detail loss.

True Wide Dynamic Range (WDR)

Cameras equipped with True Wide Dynamic Range (WDR) technology utilize advanced sensors to accommodate a broader spectrum of lighting conditions, capturing both dark and bright areas in the same frame.

H.265 Video Compression

The H.265 codec offers high-efficiency video compression, reducing data size by 25% to 50% while preserving video quality.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1440

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/2 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-VSDG04BI
Product LineMEGApix
Product ModelDWC-VSDG04Bi

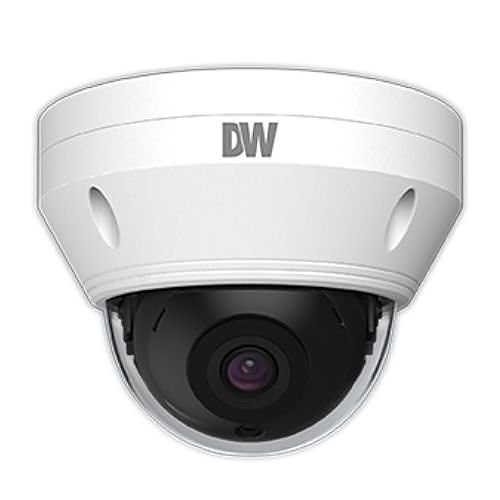

Product NameMEGApix 4MP vandal dome IP camera with fixed lens and IR
Product SeriesV-Class
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.80 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Auto Flip, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Highlight Compensation (HLC), Human Detection, Mirror, Noise Reduction, Privacy Masking, Removable IR Cut-off Filter, White Balance
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form FactorVandal Dome
Product ColorWhite
Weight (Approximate)1.43 lb

Power Description
Input Voltage12V DC

Product Information
Mount TypeCeiling Mount, Junction Box Mount, Wall Mount

Storage
Recording Formats2K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewHorizontal Field of View (HFOV) 94°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty5 Year
